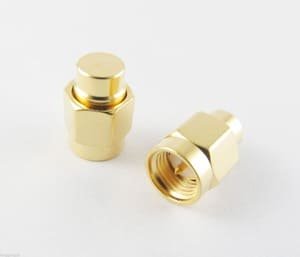

0.5 W SMA M DUMMY LOAD 3GHZ
₹281.25
0.5 W SMA M DUMMY LOAD 3GHZ is designed to safely terminate RF ports in 50Ω systems up to 3GHz. Ideal for telecom, bench testing, and antenna port protection.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹270.00 | 4% |
| 200-499 | ₹258.75 | 8% |
| 500-999 | ₹253.13 | 10% |
| 1000+ | ₹247.50 | 12% |
0.5 W? SMA M DUMMY LOAD 3GHZ
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (DC-3 GHz)
This product is designed to operate effectively across the wide frequency range of DC-3 GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Power (0.5 W)
This product has a specific characteristic for Power with a value of 0.5 W.
VSWR (1.2)
A low VSWR (Voltage Standing Wave Ratio) of 1.2 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Connector (SMA M)
The Connector type, SMA M, is the standard interface for connecting the device to cables and other equipment. This ensures compatibility and provides a secure, reliable connection.
Body Plating (Brass, Nickel plated)
This product has a specific characteristic for Body Plating with a value of Brass, Nickel plated.
Center Pin Material Plating (Beryllium Copper, Gold Plated)
This product has a specific characteristic for Center Pin Material Plating with a value of Beryllium Copper, Gold Plated.
Dielectric (PTFE (Teflon))
This product has a specific characteristic for Dielectric with a value of PTFE (Teflon).
Application (Calibration, Development etc, Testing, Training, Tuning)
This product has a specific characteristic for Application with a value of Calibration, Development etc, Testing, Training, Tuning.
Temperature Range (-55C80C)
The Temperature Range of -55C80C defines the environmental conditions in which the product can reliably operate. This wide range ensures robust performance in various climates.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Frequency Range |
DC-3 GHz |
|---|---|
| Impedance |
50Ω |
| Power |
0.5 W |
| VSWR |
≤1.2 |
| Connector |
SMA M |
| Body & Plating |
Brass ,Nickel plated |
| Center Pin Material & Plating |
Beryllium Copper ,Gold Plated |
| Dielectric |
PTFE (Teflon) |
| Application |
Calibration ,Development etc ,Testing ,Training ,Tuning |
| Temperature Range |
-55°C~+80°C |
| Compliance |
ROHS |
