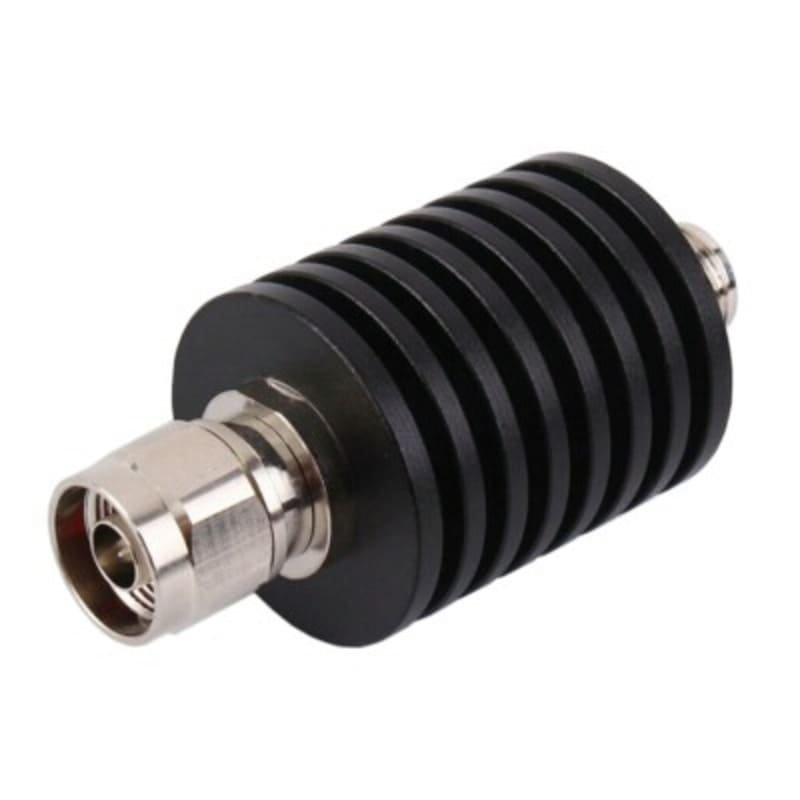

15dB 20W RF Fixed Attenuator N M/F 3GHz
₹5,625.00
This 15dB RF Fixed Attenuator with N-Type Male to Female connectors handles up to 20W and operates up to 3GHz. Perfect for telecom and lab applications.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹5,400.00 | 4% |
| 200-499 | ₹5,175.00 | 8% |
| 500-999 | ₹5,062.50 | 10% |
| 1000+ | ₹4,950.00 | 12% |
15dB 20W RF Fixed Attenuator N M/F 3GHz
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (DC-3GHz)
This product is designed to operate effectively across the wide frequency range of DC-3GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Attenuation value (15dB)
This product has a specific characteristic for Attenuation value with a value of 15dB.
VSWR ( 1.2)
A low VSWR (Voltage Standing Wave Ratio) of 1.2 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Max Power (20W)
This product has a specific characteristic for Max Power with a value of 20W.
Input/Output Connector (N M/F)
This product has a specific characteristic for Input/Output Connector with a value of N M/F.
PIM Value (-120 dBc)
This product has a specific characteristic for PIM Value with a value of -120 dBc.
Body Material Finish (Brass, Nickel Plated)
This product has a specific characteristic for Body Material Finish with a value of Brass, Nickel Plated.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (- 20 50)
This product has a specific characteristic for Operating Temperature() with a value of – 20 50.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Frequency Range |
DC-3GHz |
|---|---|
| Impedance |
50Ω |
| Attenuation value |
15dB |
| VSWR |
≤ 1.2 |
| Max Power |
20W |
| Input/Output Connector |
N M/F |
| PIM Value |
-120 dBc |
| Body Material & Finish |
Brass ,Nickel Plated |
| Compliance |
ROHS |
| Operating Temperature(℃) |
– 20 ~ +50 |
