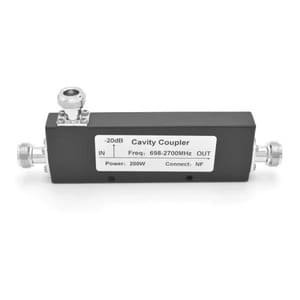

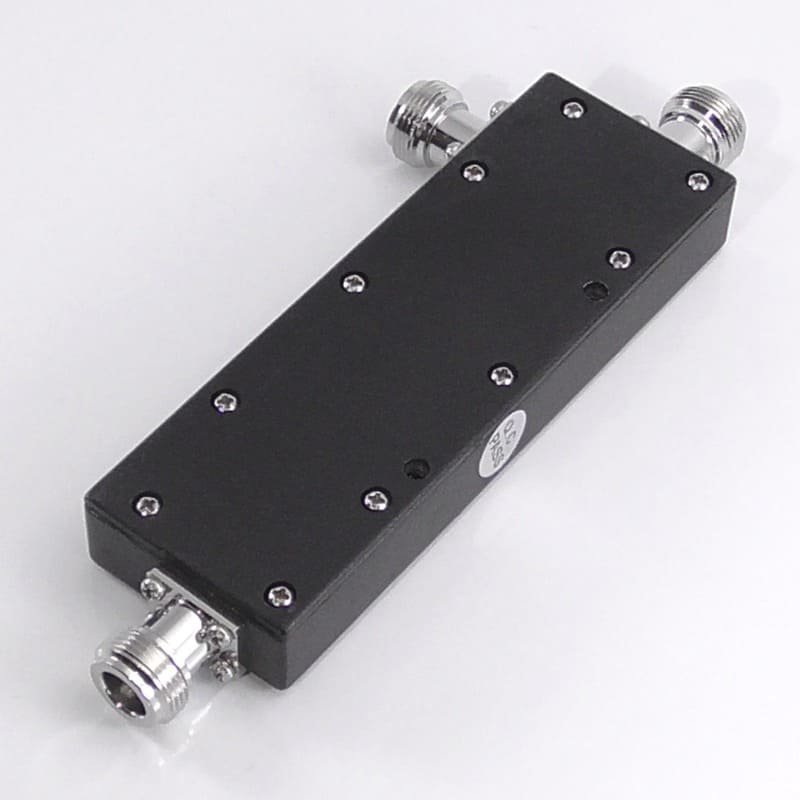

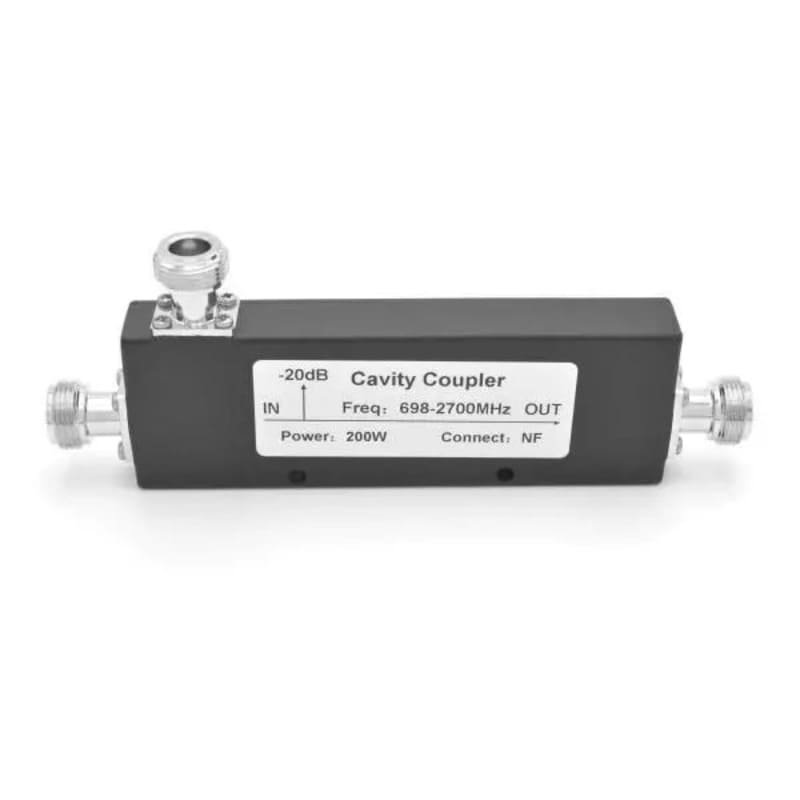

20dB DIRECTIONAL COUPLER N F/F 698-2700MHz
₹315.00
This Directional Coupler features N Female to Female connectors and operates across 698-2700MHz. Designed for wireless, telecom, and DAS systems.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹302.40 | 4% |
| 200-499 | ₹289.80 | 8% |
| 500-999 | ₹283.50 | 10% |
| 1000+ | ₹277.20 | 12% |
20dB DIRECTIONAL COUPLER N F/F 698-2700MHz
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (698-2700 MHz)
This product is designed to operate effectively across the wide frequency range of 698-2700 MHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Characteristic Impedance (50)
This product has a specific characteristic for Characteristic Impedance with a value of 50.
VSWR (1.3)
A low VSWR (Voltage Standing Wave Ratio) of 1.3 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Coupling (20 dB)
This product has a specific characteristic for Coupling with a value of 20 dB.
Insertion Loss ( 1.15 dB)
This product has a specific characteristic for Insertion Loss with a value of 1.15 dB.
Isolation ( 28 dB)
The Isolation of 28 dB refers to the level of signal separation between ports. A high isolation value prevents interference between different channels, ensuring each signal remains clean and distinct.
Connector (N-Female)
The Connector type, N-Female, is the standard interface for connecting the device to cables and other equipment. This ensures compatibility and provides a secure, reliable connection.
Power Handling (300W)
The Power Handling capability of 300W specifies the maximum RF power the device can safely handle. This high rating makes it suitable for use in high-power systems without risk of damage.
PIM ( -145 dBc)
This product has a specific characteristic for PIM with a value of -145 dBc.
Temperature Range (- 25C 70 C)
The Temperature Range of – 25C 70 C defines the environmental conditions in which the product can reliably operate. This wide range ensures robust performance in various climates.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Frequency Range |
698-2700 MHz |
|---|---|
| Characteristic Impedance |
50Ω |
| VSWR |
≤1.3 |
| Coupling |
20 dB |
| Insertion Loss |
≤ 1.15 dB |
| Isolation |
≥ 28 dB |
| Connector |
N-Female |
| Power Handling |
300W |
| PIM |
≥ -145 dBc |
| Temperature Range |
– 25°C ~+70 °C |
| Compliance |
ROHS |
