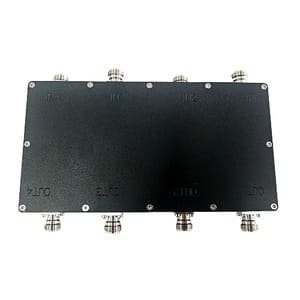

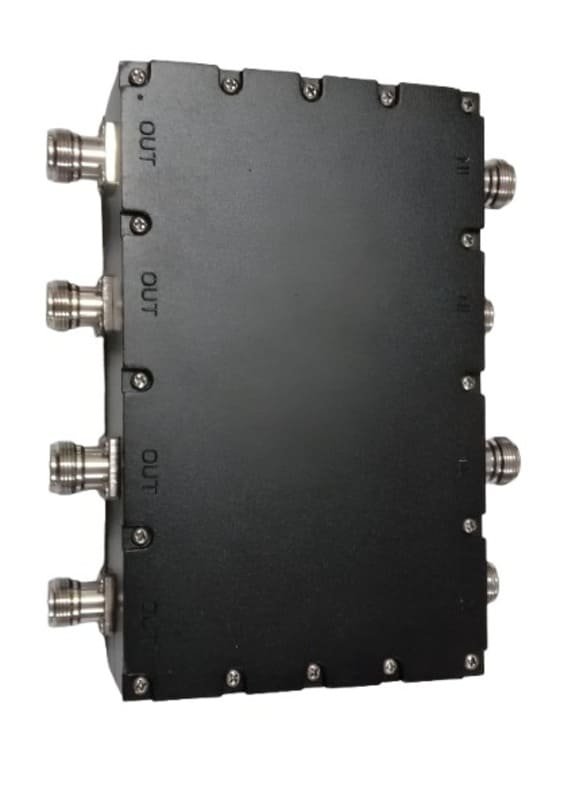

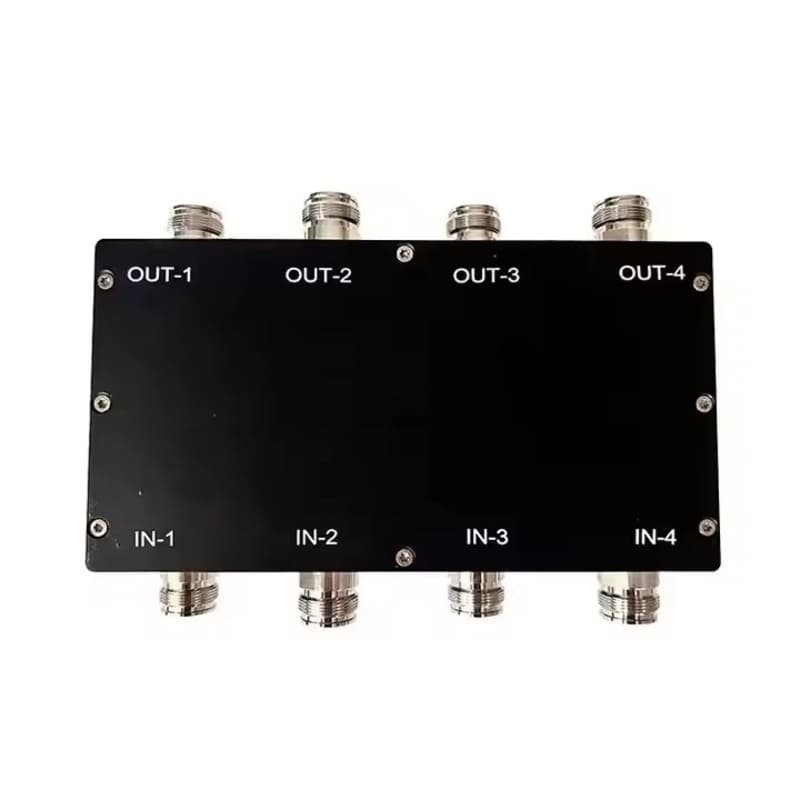

4:4 RF COMBINER 698~3800 MHz

4:4 RF COMBINER 6983800 MHz

A detailed breakdown of the key specifications and what they mean for this product:

Frequency Range (698-3800 MHz)
This product is designed to operate effectively across the wide frequency range of 698-3800 MHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.

Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.

VSWR (1.3)
A low VSWR (Voltage Standing Wave Ratio) of 1.3 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.

Insertion Loss(dB) (6.5 dB)
The Insertion Loss of 6.5 dB is a measure of signal power lost when it passes through the device. A low value is desirable as it means the device has minimal impact on the signals strength, preserving its quality.

Isolation (20 dB)
The Isolation of 20 dB refers to the level of signal separation between ports. A high isolation value prevents interference between different channels, ensuring each signal remains clean and distinct.

Power Handling (300W)
The Power Handling capability of 300W specifies the maximum RF power the device can safely handle. This high rating makes it suitable for use in high-power systems without risk of damage.

Connector (4.3-10 Female)
The Connector type, 4.3-10 Female, is the standard interface for connecting the device to cables and other equipment. This ensures compatibility and provides a secure, reliable connection.

Degree of Protection (IP65)
The Degree of Protection rating of IP65 is a standard for ingress protection. This rating guarantees that the device is sealed against environmental factors like dust and water, making it suitable for outdoor or industrial use.

Color (Black)
This product has a specific characteristic for Color with a value of Black.

Temperature Range (- 25C 75 C)
The Temperature Range of – 25C 75 C defines the environmental conditions in which the product can reliably operate. This wide range ensures robust performance in various climates.

Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.

Applications
This RF combiner is ideal for use in cellular networks, telecommunications infrastructure, and signal distribution systems where multiple RF signals need to be consolidated or managed. It is commonly deployed in base stations, repeater systems, and wireless broadband installations.
