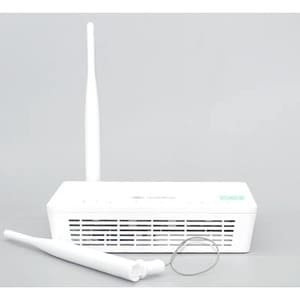

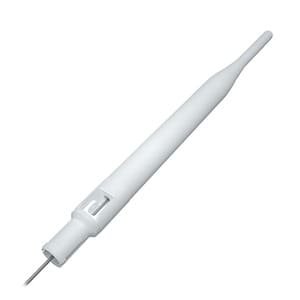

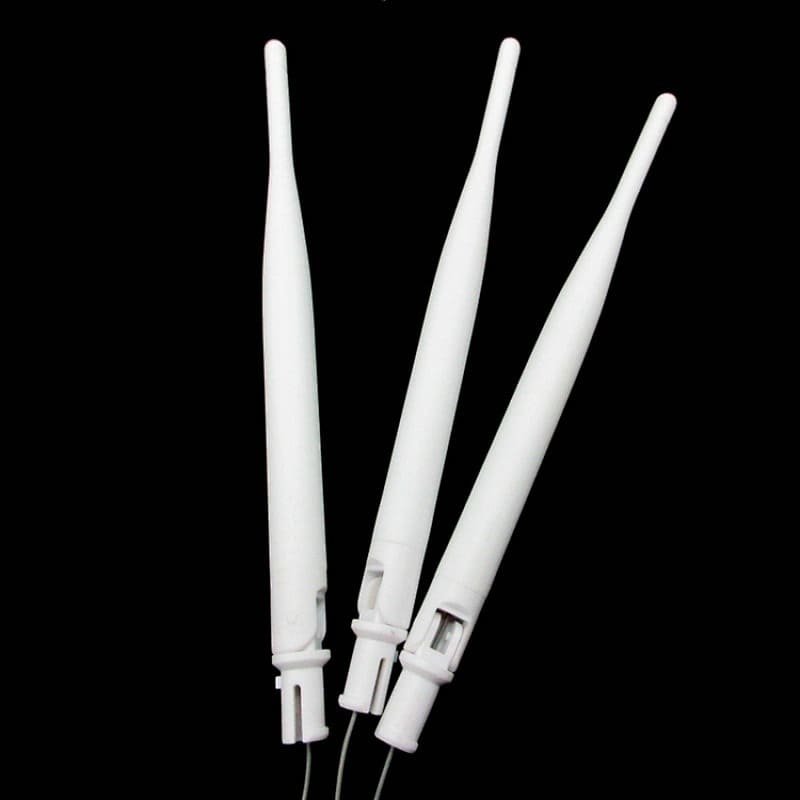

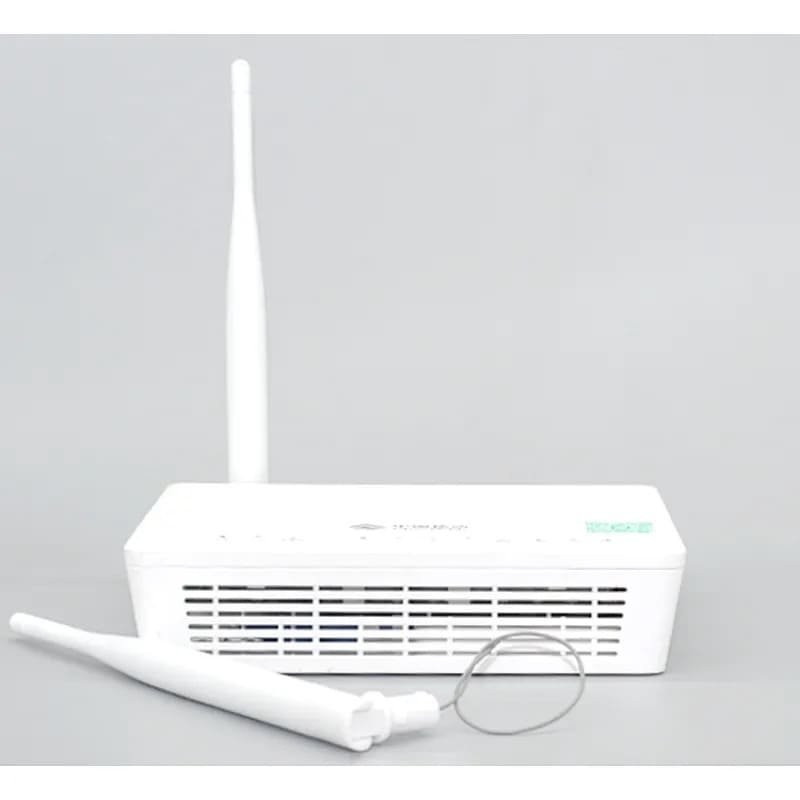

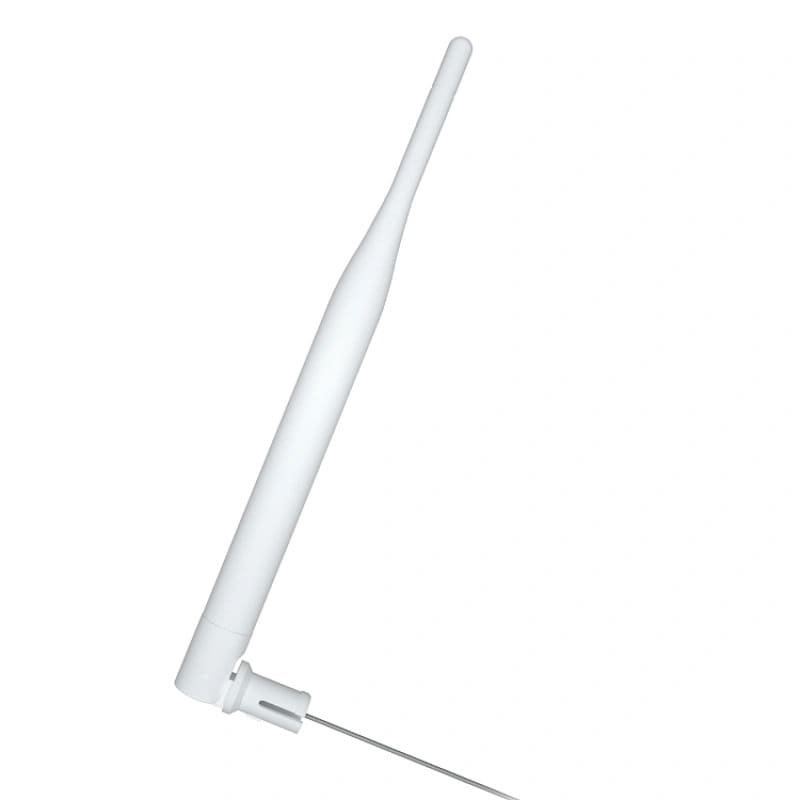

5dbi 2.4G Wifi Router Antenna 2400~2483MHz Dual Band Omni Directional
₹231.25
5dbi 2.4G Wifi Router Antenna 2400~2483MHz Dual Band Omni Directional provides reliable wireless signal coverage across bands like 700–2700MHz. Great for IoT, WiFi routers, and telemetry systems.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹222.00 | 4% |
| 200-499 | ₹212.75 | 8% |
| 500-999 | ₹208.13 | 10% |
| 1000+ | ₹203.50 | 12% |
5dbi 2.4G Wifi Router Antenna 24002483MHz Dual Band Omni Directional
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (24002483MHz)
This product is designed to operate effectively across the wide frequency range of 24002483MHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Gain (5dBi)
The Gain of 5dBi indicates the antennas ability to focus signal power in a specific direction. A higher gain value like this suggests improved signal strength and a longer transmission or reception distance in the direction it is pointed.
VSWR ( 1.8)
A low VSWR (Voltage Standing Wave Ratio) of 1.8 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Radiation Pattern (Omni Directional)
This product has a specific characteristic for Radiation Pattern with a value of Omni Directional.
Polarization Type (Vertical)
This product has a specific characteristic for Polarization Type with a value of Vertical.
Max Power (50 W)
This product has a specific characteristic for Max Power with a value of 50 W.
Color (White or Black)
This product has a specific characteristic for Color with a value of White or Black.
Connector Type (UFL male)
This product has a specific characteristic for Connector Type with a value of UFL male.
Size (13195mm)
This product has a specific characteristic for Size with a value of 13195mm.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (-20 to 60)
This product has a specific characteristic for Operating Temperature() with a value of -20 to 60.
Applications
This antenna is designed for various wireless applications, including cellular network coverage, point-to-point and point-to-multipoint communication, and improving signal strength for cellular modems and other wireless devices. Its wide frequency range makes it highly versatile.
| Frequency Range |
2400~2483MHz |
|---|---|
| Impedance |
50Ω |
| Gain |
5dBi |
| VSWR |
 ≤ 1.8 |
| Radiation Pattern |
Omni Directional |
| Polarization Type |
Vertical |
| Max Power |
50 W |
| Color |
White or Black |
| Connector Type |
UFL male |
| Size |
13*195mm |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-20 to +60 |
