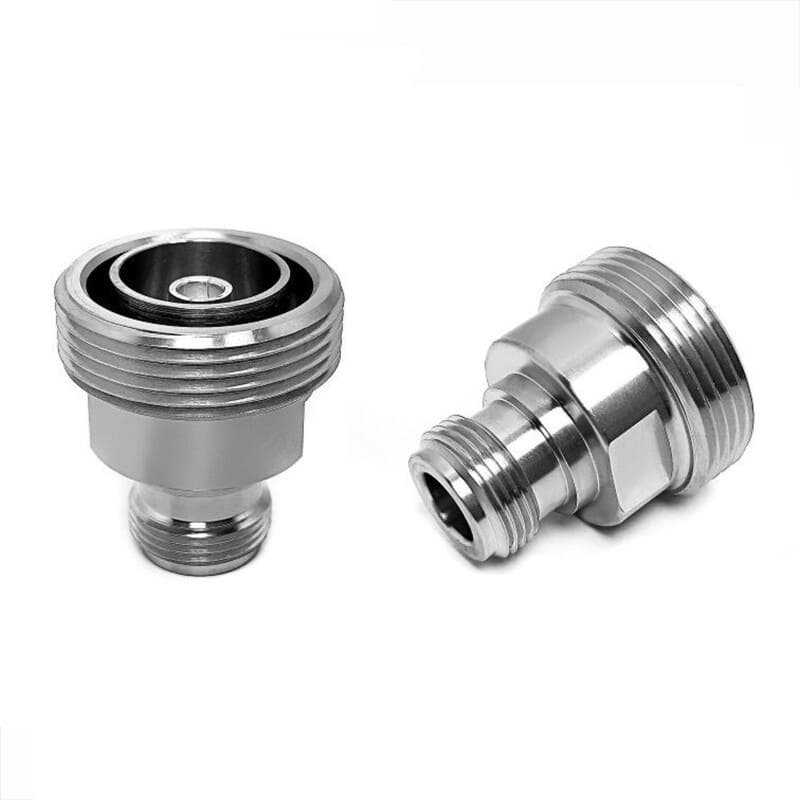

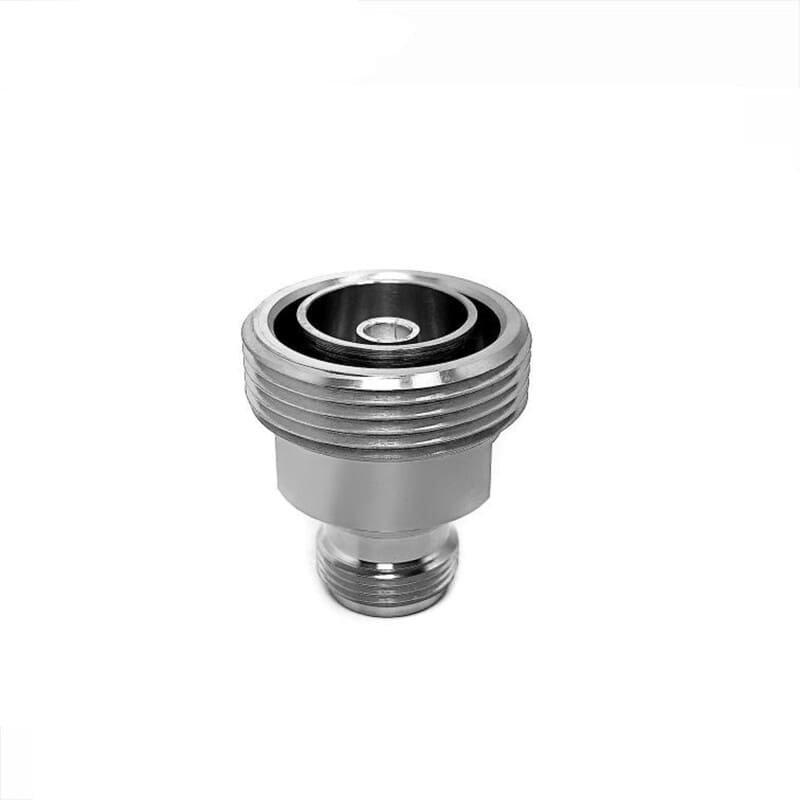

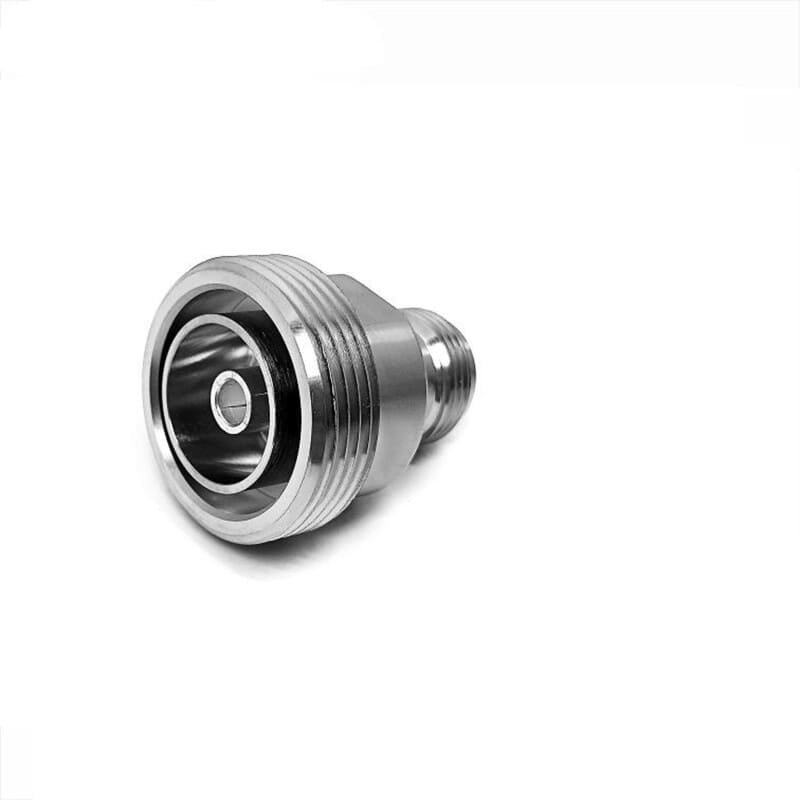

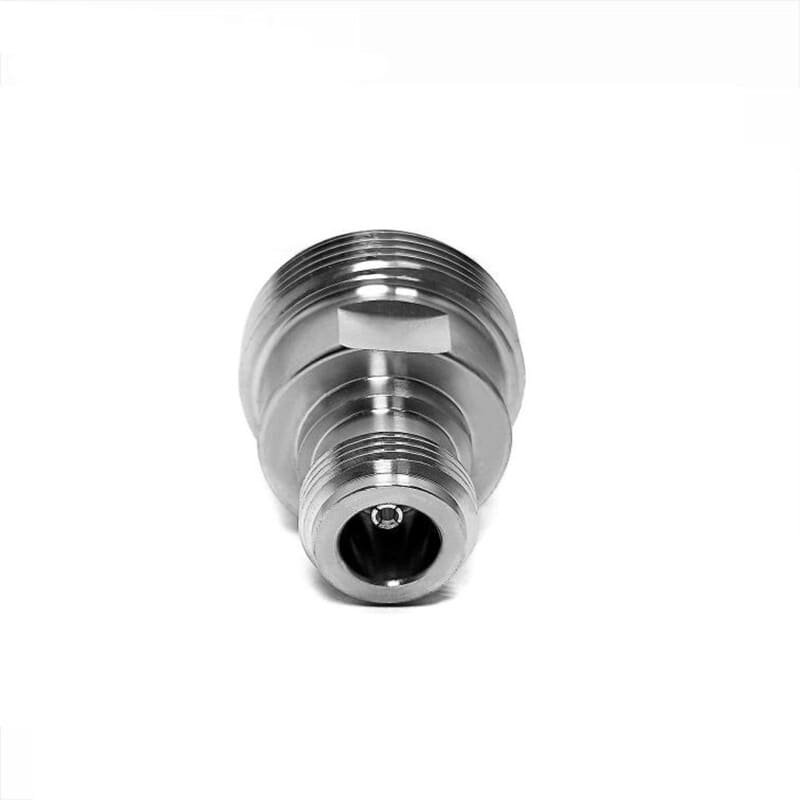

7/16 DIN Female to N Female Adapter

7/16 DIN Female to N Female RF Adapter – Low PIM Infrastructure Connector (DC-7.5 GHz, 50 Ohm)

The 7/16 DIN Female to N Female Adapter is the essential low-loss solution for precision linking large, high-power 7/16 DIN infrastructure lines to the rugged N-Type interface. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical cellular base station, repeater, and rugged wireless applications.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand, consistent performance, providing a secure connection between infrastructure-grade 7/16 DIN and N-Type systems:

• Frequency Range: DC to 7.5 GHz (Extends far beyond traditional cellular bands, supporting 3G, 4G, 5G, and emerging wireless applications).
• Impedance: 50 Ohms (Standard for professional telecom and RF infrastructure, ensuring optimal component matching and low reflection).
• VSWR: < 1.2 @ 6 GHz (Indicates highly efficient power transfer and low signal energy loss, crucial for infrastructure).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in harsh environmental and repeated connection scenarios).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials specifically chosen for superior longevity, high-power handling, and stable electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, robust RF shielding, and high corrosion resistance, ideal for outdoor enclosures.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and power handling.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 7.5 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• 7/16 DIN to N-Type Adapter (Female-Female)
• DIN Female to N Female Connector
• 50 Ohm DIN N Adapter
• Low PIM Adapter 7/16 DIN to N
• N Female to 7/16 DIN Female Converter
• Adapter for Base Station Components
• Connecting N-Type Cable to 7/16 DIN Port
• RF Infrastructure Adapter
• 7.5 GHz DIN N Adapter
• Adapter for DAS/Repeater Systems
• Wireless Base Station Connector
• Gold Plated DIN N Contact
• PTFE Insulator Telecom Adapter
• Adapter for High Power RF Link
• Nickel Brass DIN N Connector
• High-Integrity 7/16 N Adapter
• DC-7.5 GHz RF Adapter
• 7/16 DIN Jack to N Jack Adapter
• Adapter for Cell Tower Equipment
• High-Reliability Coaxial Adapter

Applications: Ideal for cellular base stations (BTS), in-building DAS (Distributed Antenna Systems), connecting N-Type jumper cables to 7/16 DIN equipment ports, and in any high-power, low-PIM (Passive Intermodulation) telecom infrastructure where a secure 7/16 DIN interface must connect to an N-Type interface.
