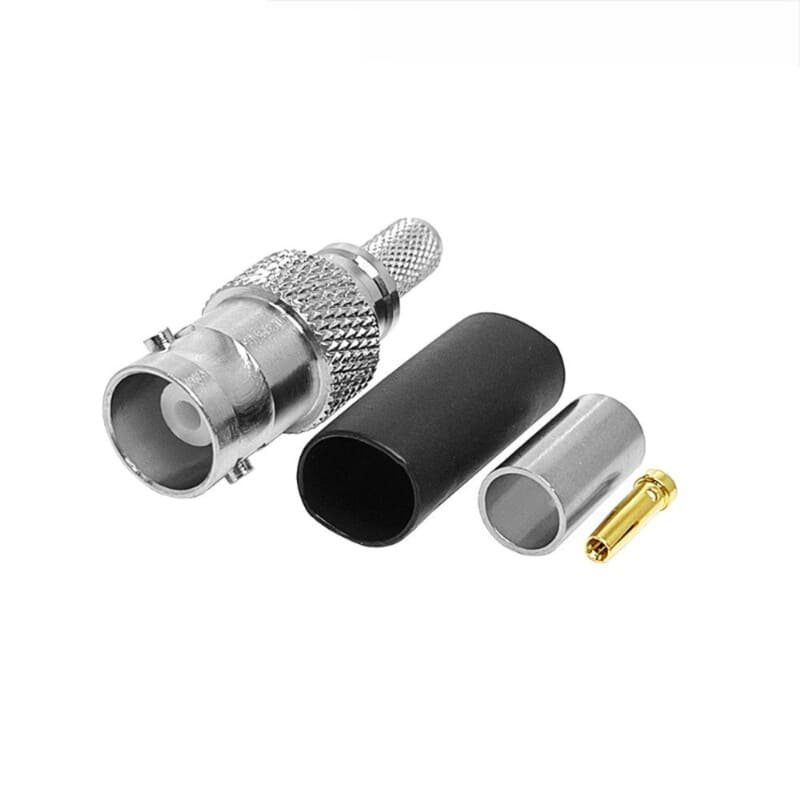

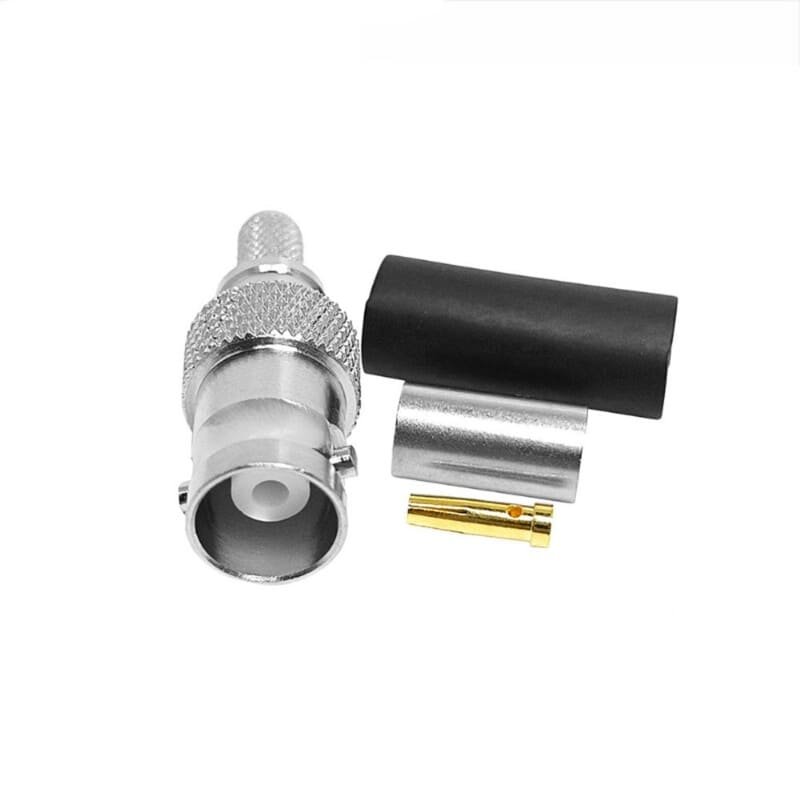

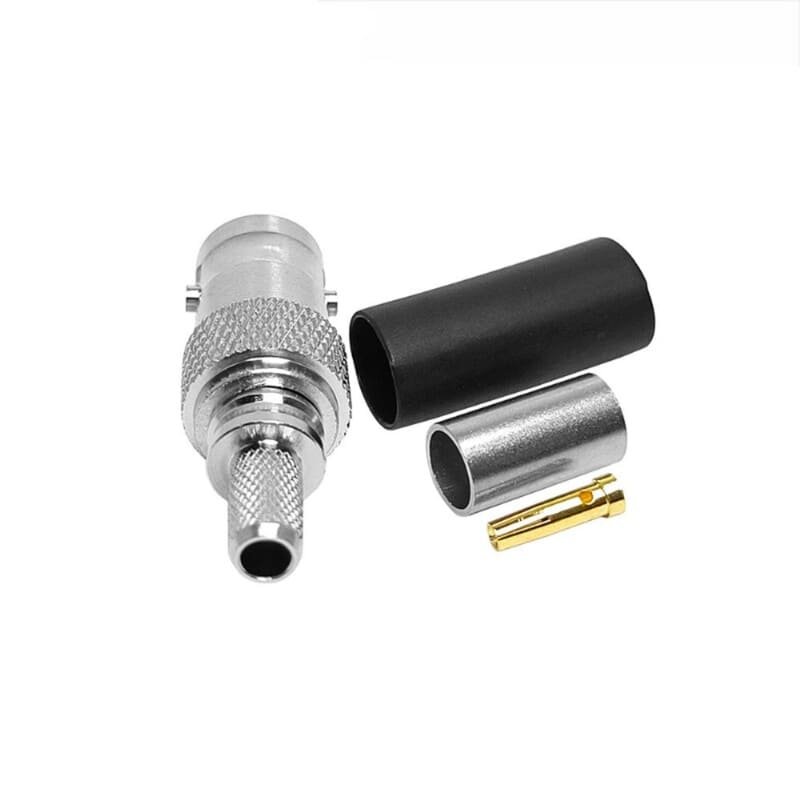

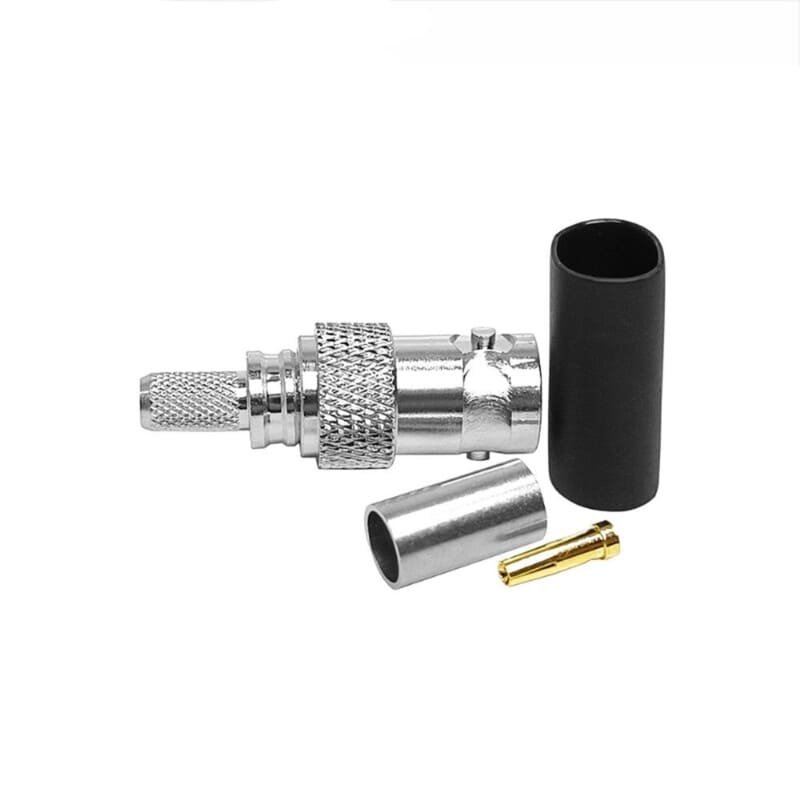

BNC F CRIMP for LMR240 Cable
₹73.13
This BNC Female Crimp Connector fits semi-rigid cables. It is ROHS compliant and operates from -40°C to +125°C, delivering excellent RF performance for telecom and laboratory use.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹70.20 | 4% |
| 200-499 | ₹67.28 | 8% |
| 500-999 | ₹65.82 | 10% |
| 1000+ | ₹64.35 | 12% |
BNC F CRIMP for LMR240 Cable
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (DC-4 GHz)
This product is designed to operate effectively across the wide frequency range of DC-4 GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Dielectric withsanding V (1.5 kV rms, 50 Hz(depending on cable))
This product has a specific characteristic for Dielectric withsanding V with a value of 1.5 kV rms, 50 Hz(depending on cable).
Insulation resistance ( 5000 M)
This product has a specific characteristic for Insulation resistance with a value of 5000 M.
Contact resistance (Inner Contact: 1.5 m; Outer Contact: 1 m)
This product has a specific characteristic for Contact resistance with a value of Inner Contact: 1.5 m; Outer Contact: 1 m.
RF leakage ( 55 dB)
This product has a specific characteristic for RF leakage with a value of 55 dB.
Durability (matings) ( 500)
This product has a specific characteristic for Durability (matings) with a value of 500.
Body and Outer Contacts (Brass, gold nickel plated)
This product has a specific characteristic for Body and Outer Contacts with a value of Brass, gold nickel plated.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (-40? to 125)
This product has a specific characteristic for Operating Temperature() with a value of -40? to 125.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Weight | 0.025 kg |
|---|---|
| Frequency Range |
DC-4 GHz |
| Impedance |
50Ω |
| Dielectric withsanding V |
1.5 kV rms ,50 Hz(depending on cable) |
| Insulation resistance |
≥ 5000 MΩ |
| Contact resistance |
Inner Contact: ≤1.5 mΩ; Outer Contact: ≤1 mΩ |
| RF leakage |
≥ 55 dB |
| Durability (matings) |
≥ 500 |
| Body and Outer Contacts |
Brass ,gold & nickel plated |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-40 to +125 |
