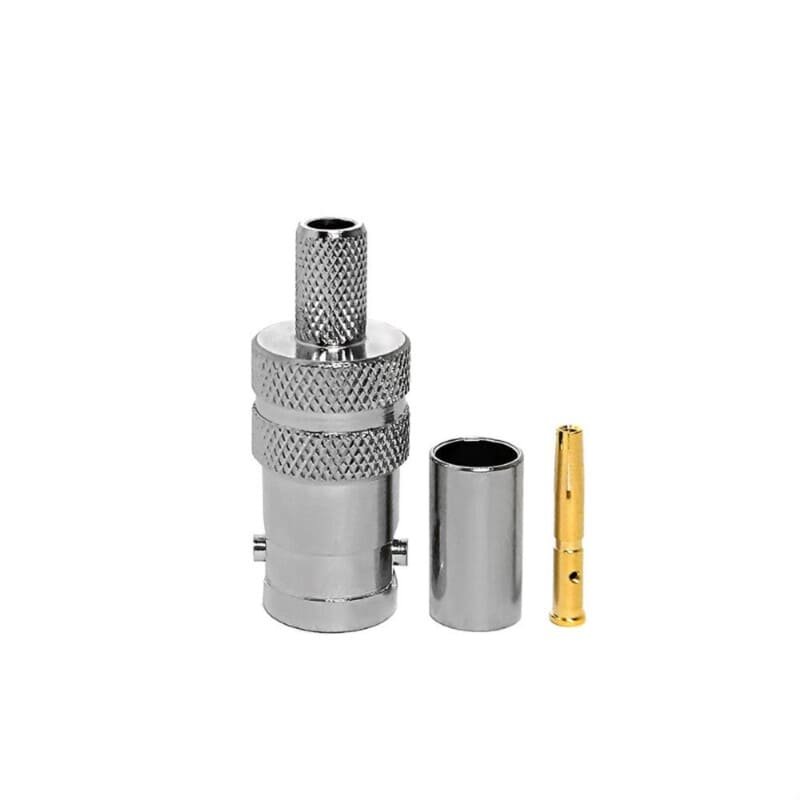

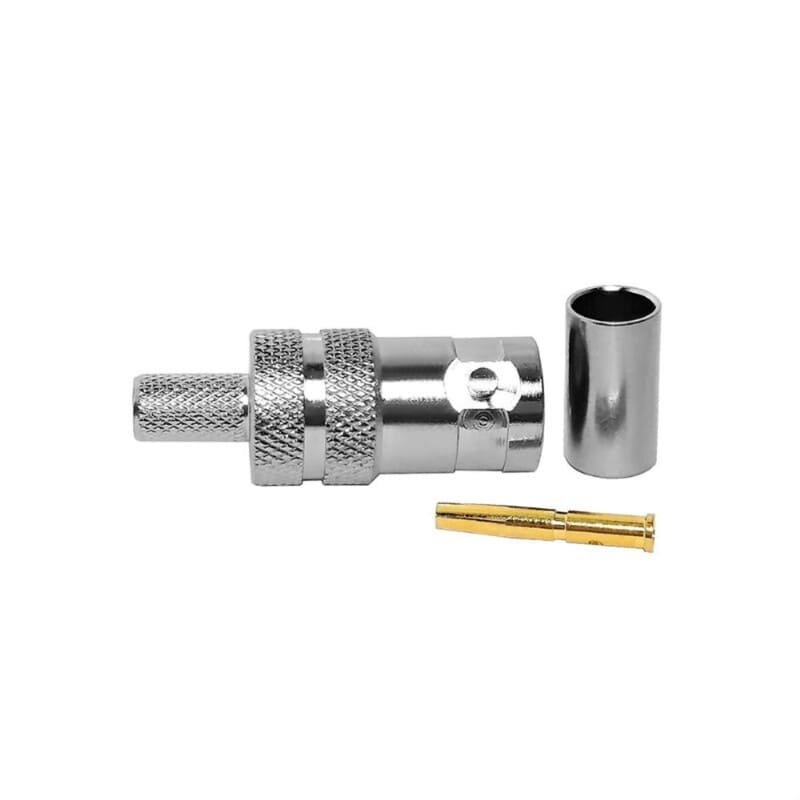

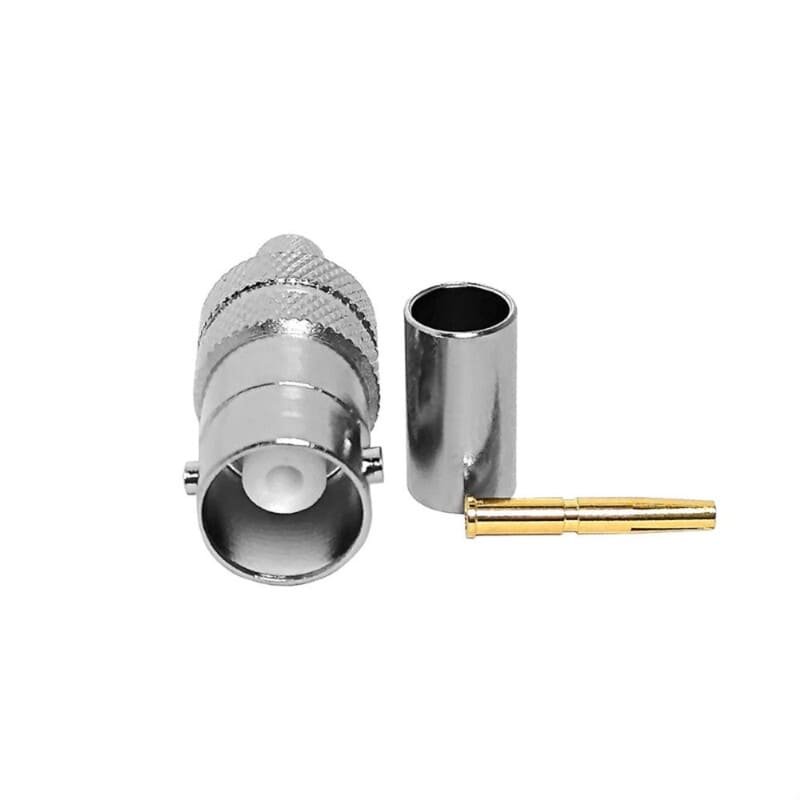

BNC F CRIMP for RG58/RG142/LMR195/LMR200 Cable
₹68.75
This BNC Female Crimp Connector fits semi-rigid cables. It is ROHS compliant and operates from -40°C to +125°C, delivering excellent RF performance for telecom and laboratory use.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹66.00 | 4% |
| 200-499 | ₹63.25 | 8% |
| 500-999 | ₹61.88 | 10% |
| 1000+ | ₹60.50 | 12% |
| Weight | 0.025 kg |
|---|---|
| Frequency Range |
DC-4 GHz |
| Impedance |
50Ω |
| Dielectric withsanding V |
1.5 kV rms ,50 Hz(depending on cable) |
| Insulation resistance |
≥ 5000 MΩ |
| Contact resistance |
Inner Contact: ≤1.5 mΩ; Outer Contact: ≤1 mΩ |
| RF leakage |
≥ 55 dB |
| Durability (matings) |
≥ 500 |
| Body and Outer Contacts |
Brass ,gold & nickel plated |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-40 to +125 |
