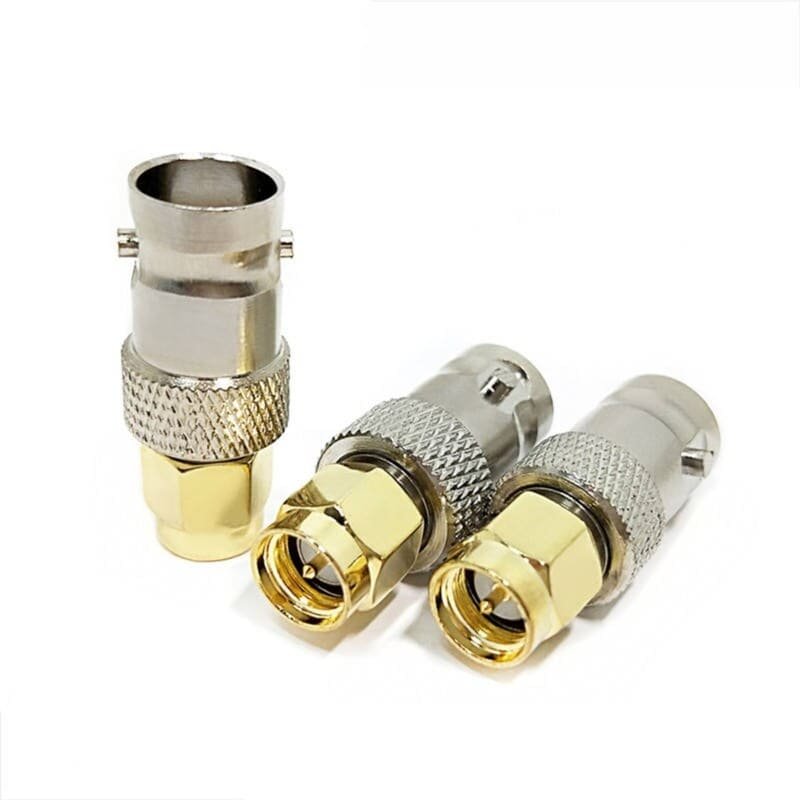

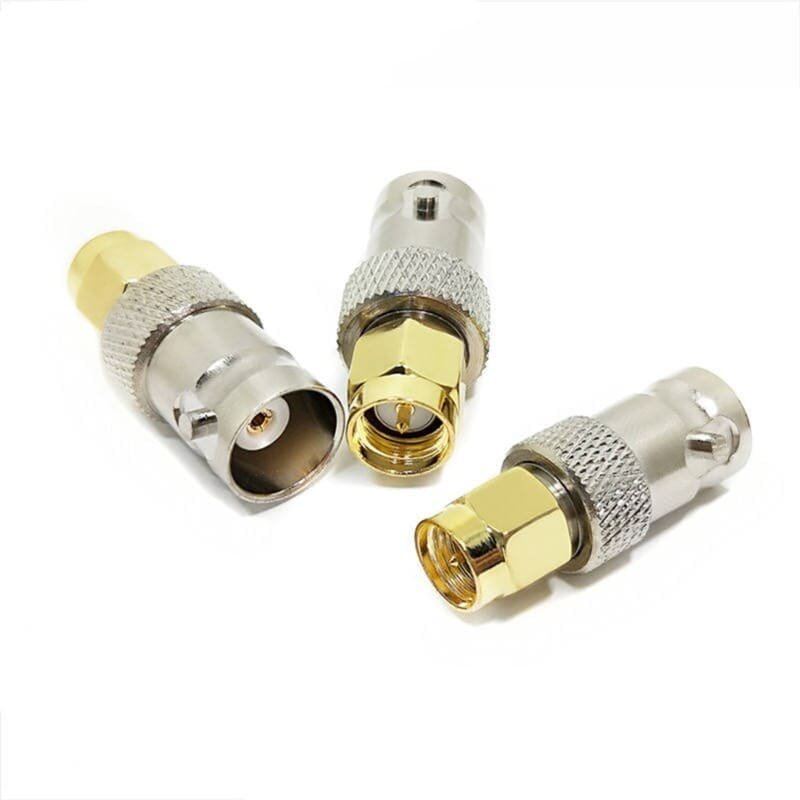

BNC Female to SMA Male Adapter

BNC Female to SMA Male RF Coaxial Adapter – Low Loss Test & Wireless Connector (DC-6 GHz)

The BNC Female to SMA Male Adapter is the essential low-loss solution for precision bridging of BNC and SMA systems. Engineered for minimal signal degradation, this connector ensures reliable power transfer across critical test, measurement, and wireless bands.

Key Specifications and Performance

This adapter is built to meet high-demand requirements, providing the consistent performance needed for professional field testing and permanent RF installations:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard for all professional RF equipment, ensuring perfect component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• BNC to SMA Adapter (Female-Male)
• BNC Female to SMA Male Connector
• BNC Jack to SMA Plug Adapter
• 50 Ohm BNC SMA Adapter
• SMA Male to BNC Female Converter
• Low Loss BNC SMA Connector
• Adapter for Handheld Radio BNC to SMA
• Adapter for RF Signal Generator (BNC out)
• Connecting BNC Scope to SMA Device
• BNC Female to SMA Male RF Coupler
• 6 GHz SMA BNC Test Adapter
• Adapter for Wireless Receiver (SMA input)
• BNC to SMA for Scanner / SDR
• Test Equipment Adapter BNC SMA
• Gold Plated BNC SMA Connector
• PTFE Insulator Coaxial Adapter
• Connecting RG-58 BNC Cable to SMA Device
• Telemetry and Data Link Adapter
• High-Integrity Coaxial Adapter
• Nickel Brass BNC SMA Connector

Applications: Ideal for oscilloscopes, spectrum analyzers, signal generators, handheld RF testing, amateur radio setups, and connecting BNC-terminated cables to SMA-input devices.
