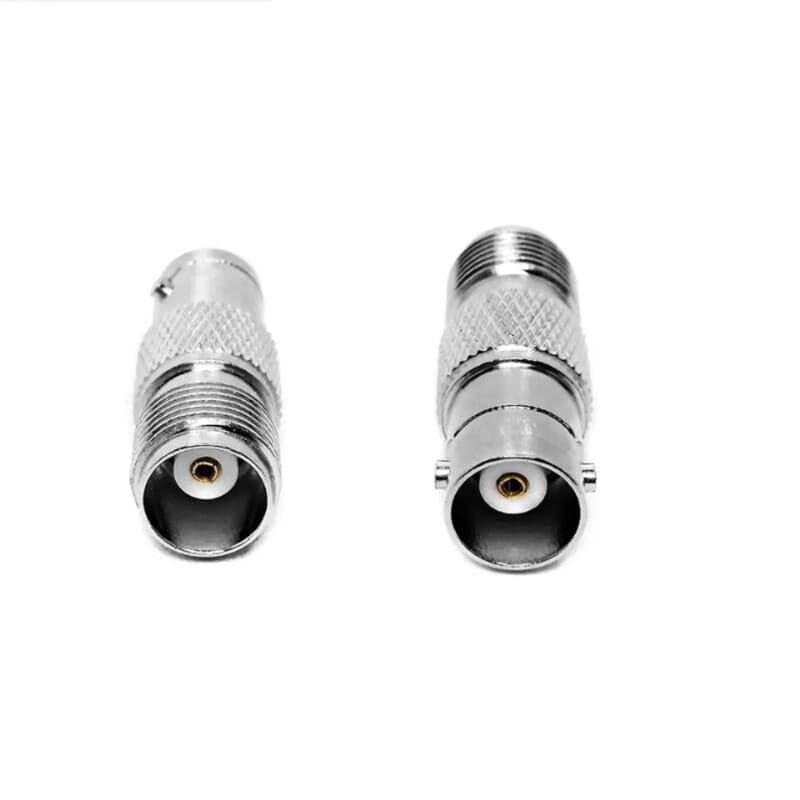

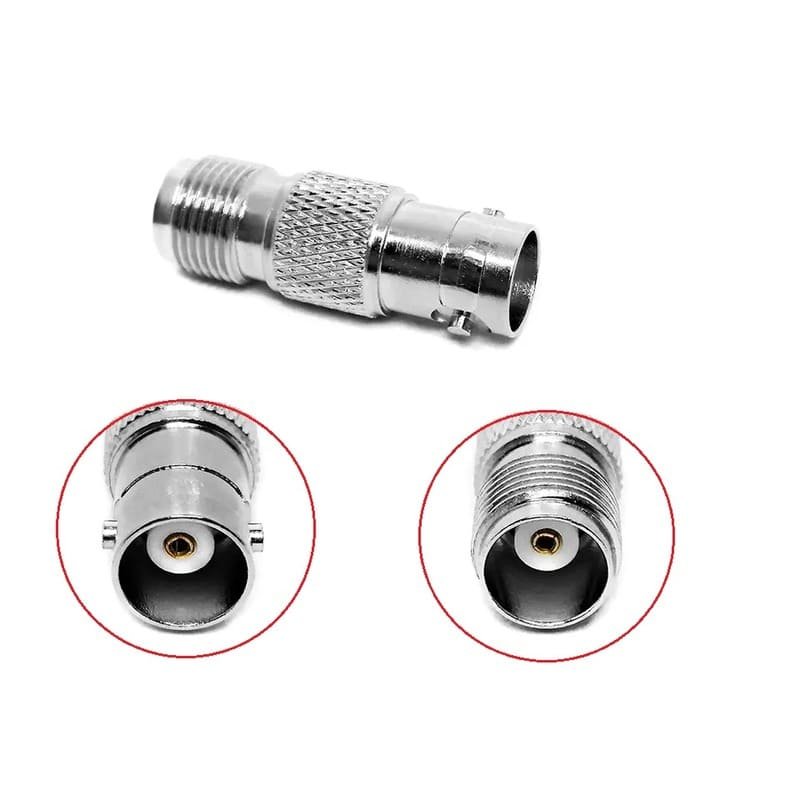

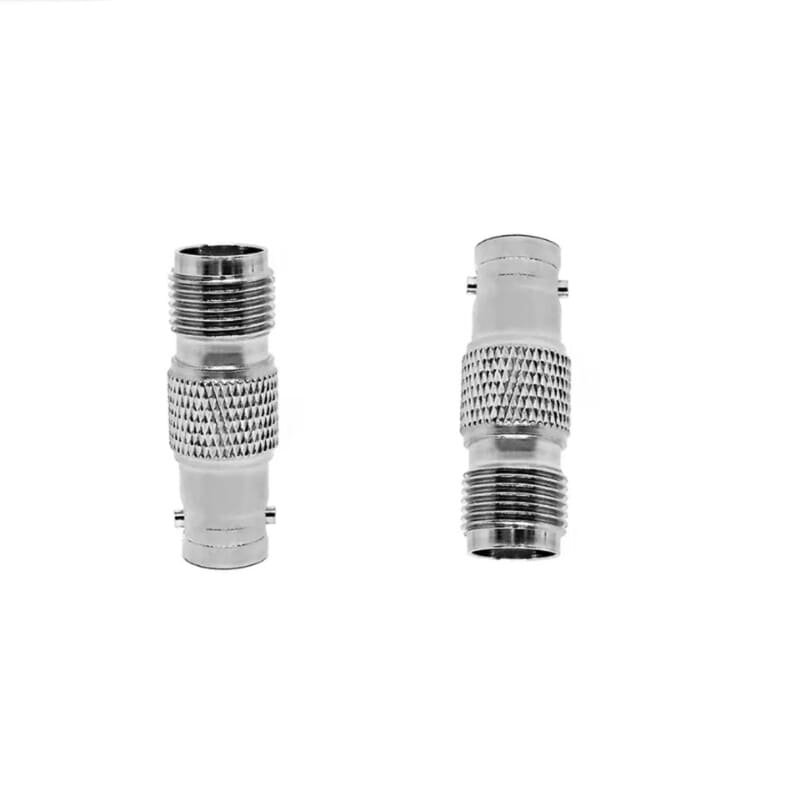

BNC Female to TNC Female Adapter

BNC Female to TNC Female RF Coaxial Adapter – Threaded Low Loss Connector (DC-6 GHz)

The BNC Female to TNC Female Adapter is the essential low-loss solution for converting BNC interfaces to the more secure, threaded TNC interface. Engineered for precision, this connector ensures minimal signal degradation and reliable power transfer across critical wireless and rugged infrastructure bands.

Key Specifications and Performance

This adapter is built to meet high-demand requirements, providing the consistent performance needed for professional field testing and permanent RF installations:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard for all professional RF equipment, ensuring perfect component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics, utilizing the threaded TNC mechanism for secure, vibration-resistant connections:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• BNC to TNC Adapter (Female-Female)
• BNC Female to TNC Female Coupler
• BNC to TNC RF Converter
• 50 Ohm BNC TNC Adapter
• TNC to BNC Adapter
• Threaded BNC TNC Connector
• BNC Jack to TNC Jack Adapter
• Low Loss BNC TNC Connector
• Connecting BNC Equipment to TNC Antenna
• TNC Female to BNC Female Barrel
• 6 GHz TNC BNC Adapter
• Vibration-Resistant BNC TNC
• Adapter for Wireless Data Radios
• BNC to TNC for Aviation/Marine Radio
• Gold Plated BNC TNC Connector
• Telemetry System Adapter
• RF Test Bench Adapter
• BNC to TNC Straight Adapter
• TNC Female to BNC Female Coaxial
• Nickel Brass BNC TNC Connector
• PTFE Insulator TNC BNC

Applications: Ideal for rugged field installations, data telemetry links, marine and aviation radio systems, and laboratory testing where a secure, vibration-proof connection is required, converting bayonet BNC interfaces to threaded TNC interfaces.
