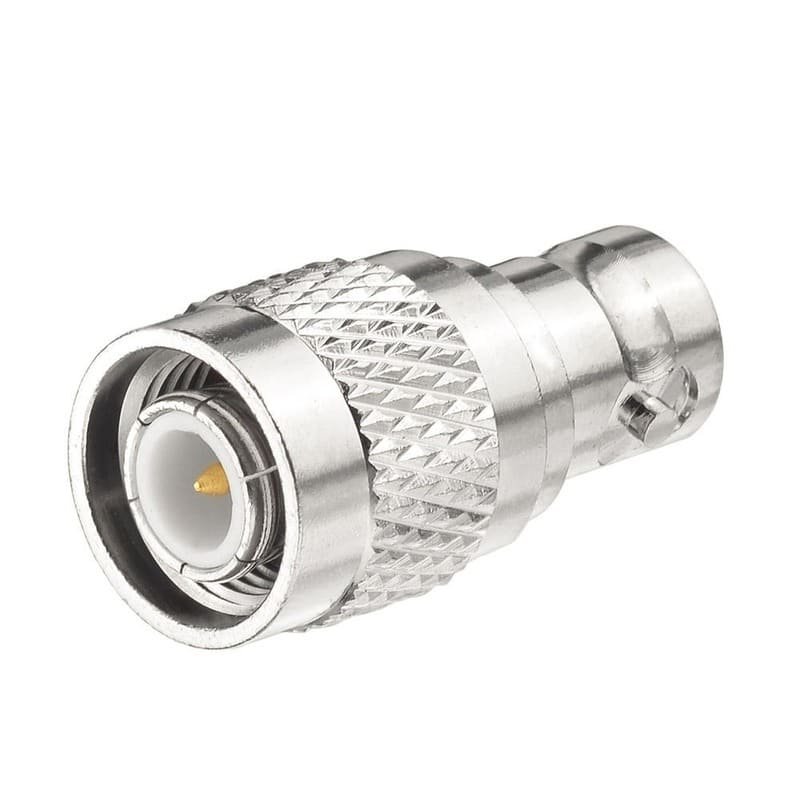

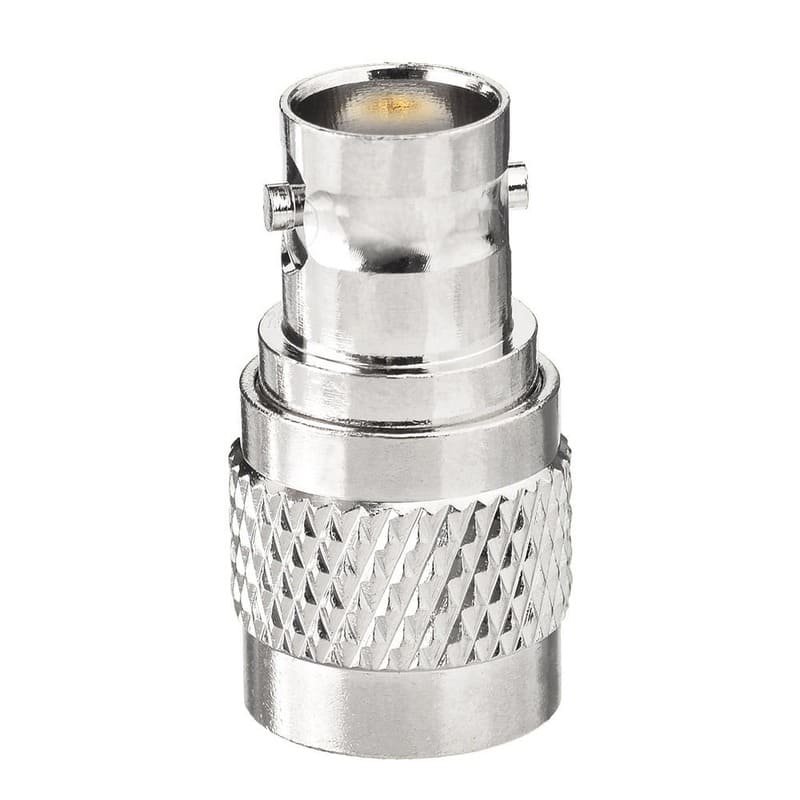

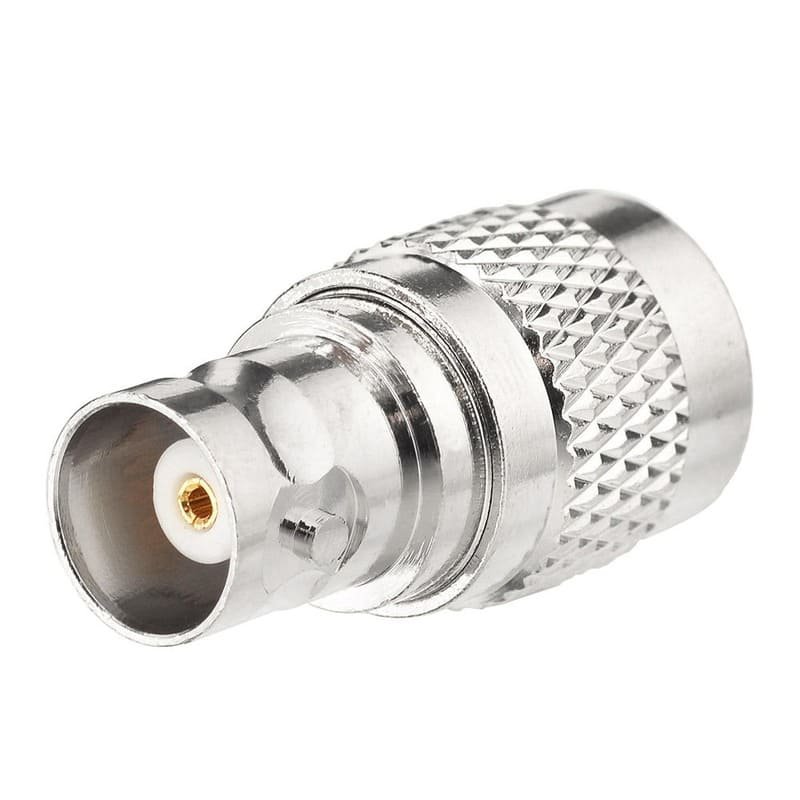

BNC Female to TNC Male Adapter

BNC Female to TNC Male RF Coaxial Adapter – Threaded Low Loss Connector (DC-6 GHz)

The BNC Female to TNC Male Adapter is the essential low-loss solution for precision linking BNC interfaces to the secure, threaded TNC male connector. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical test, measurement, and field wireless bands.

Key Specifications and Performance

This adapter is built for high-demand requirements, providing the consistent performance needed for professional installations where security and vibration resistance are critical:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard for all professional RF equipment, ensuring perfect component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics, leveraging the threaded TNC coupling for a secure connection:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• BNC to TNC Adapter (Female-Male)
• BNC Jack to TNC Plug Adapter
• BNC Female to TNC Male Connector
• 50 Ohm BNC TNC Adapter
• TNC Male to BNC Female Converter
• Low Loss BNC TNC Connector
• Adapter for TNC Antenna to BNC Radio
• Connecting BNC Equipment to TNC Cable
• RF Test Adapter BNC TNC
• Threaded TNC to Bayonet BNC Adapter
• Vibration-Resistant Coaxial Adapter
• 6 GHz TNC BNC Adapter
• Adapter for Wireless Modems (TNC)
• BNC to TNC for Data Communication
• Gold Plated BNC TNC Connector
• PTFE Insulator TNC BNC
• Connecting RG-58 BNC Cable to TNC Device
• Telemetry and Field Equipment Adapter
• High-Integrity Coaxial Adapter
• Nickel Brass BNC TNC Connector

Applications: Ideal for rugged, high-vibration environments, wireless access points, telemetry links, GPS antennas, and any professional application requiring a secure, threaded TNC connection to a standard BNC interface.
