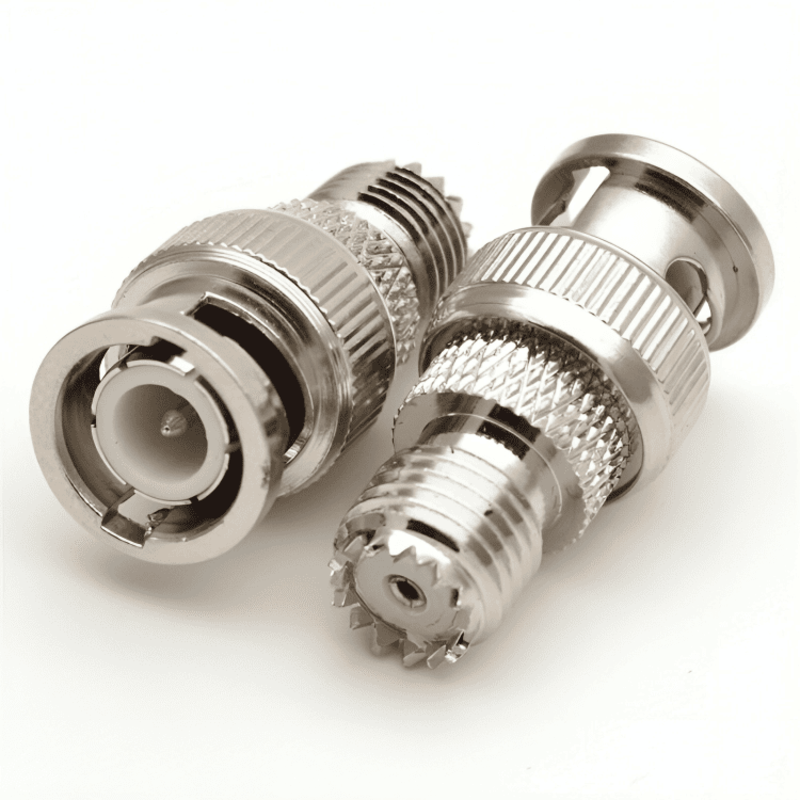

BNC Male to Mini UHF Female Adapter

BNC Male to Mini UHF Female RF Adapter – Low Loss Test & Communications Connector (DC-6 GHz, 50 Ohm)

The BNC Male to Mini UHF Female Adapter is the essential low-loss solution for precision linking BNC male interfaces to the smaller, threaded Mini UHF interfaces. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical mobile radio, test & measurement, and wireless communication bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand requirements, providing the consistent performance needed for applications where a secure connection between standard BNC and Mini UHF systems is necessary:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard value for professional RF and test equipment, ensuring optimal component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Beryllium Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and repeated connections.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• BNC Male to Mini UHF Female Connector
• BNC Plug to Mini UHF Jack Adapter
• 50 Ohm BNC Mini UHF Adapter
• Mini UHF Female to BNC Male Converter
• Low Loss BNC Mini UHF Connector
• Adapter for Mobile Two-Way Radios (Mini UHF)
• Connecting BNC Equipment to Mini UHF Cable
• RF Test Adapter BNC Mini UHF
• 6 GHz BNC Mini UHF Adapter
• BNC Male to Mini UHF Female Coupler
• Adapter for Handheld Scanner (Mini UHF)
• Gold Plated Beryllium Copper Contact
• PTFE Insulator Coaxial Adapter
• Mini UHF Adapter for Vehicle Radio
• BNC to Mini UHF for Data Link
• Nickel Brass BNC Mini UHF Connector
• High-Integrity Coaxial Adapter
• DC-6 GHz RF Adapter
• BNC to Mini UHF for Telemetry
• Adapter BNC Plug to Mini UHF Jack

Applications: Ideal for mobile radio communications (VHF/UHF), automotive/vehicle installations, laboratory testing where 50 Ohm BNC equipment needs to interface with Mini UHF cables, and connecting portable field equipment.
