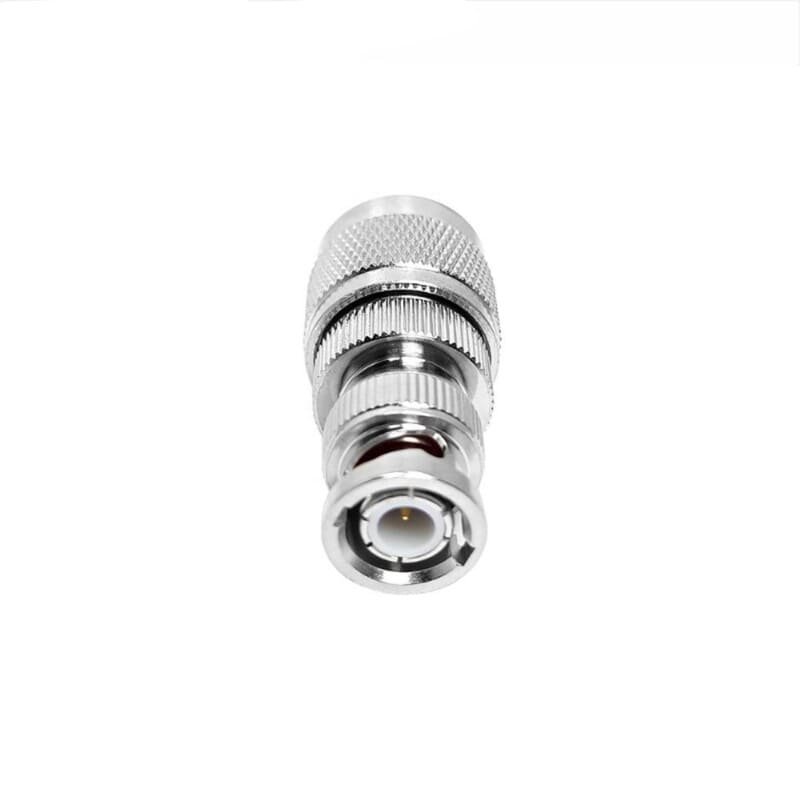

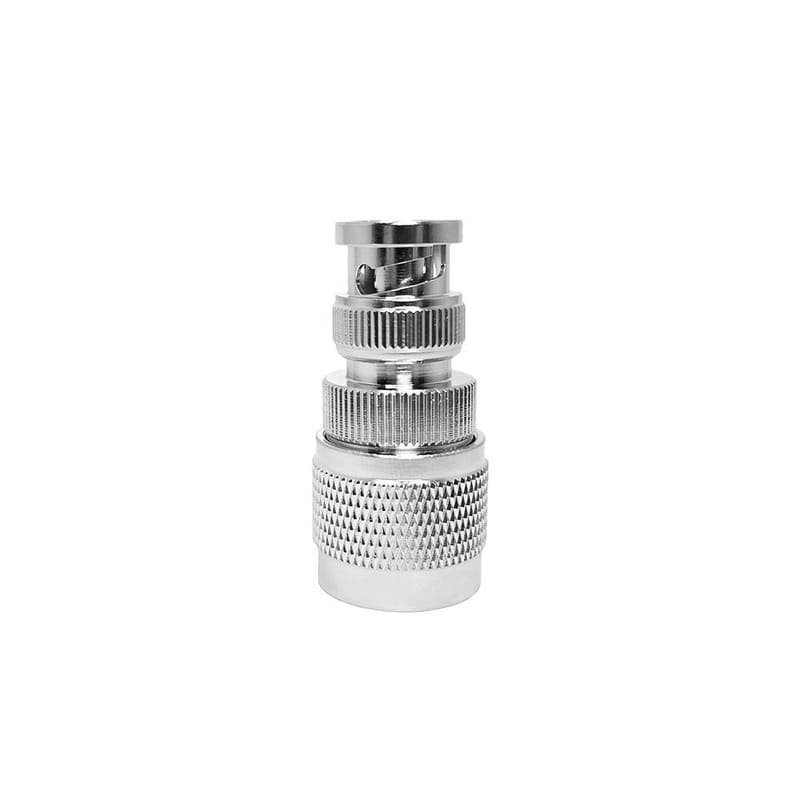

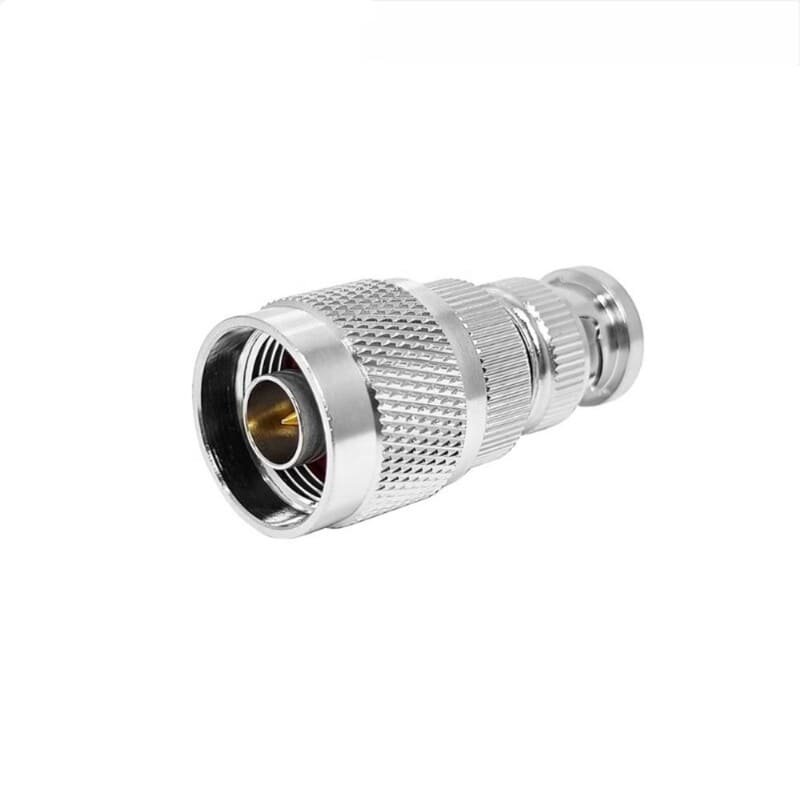

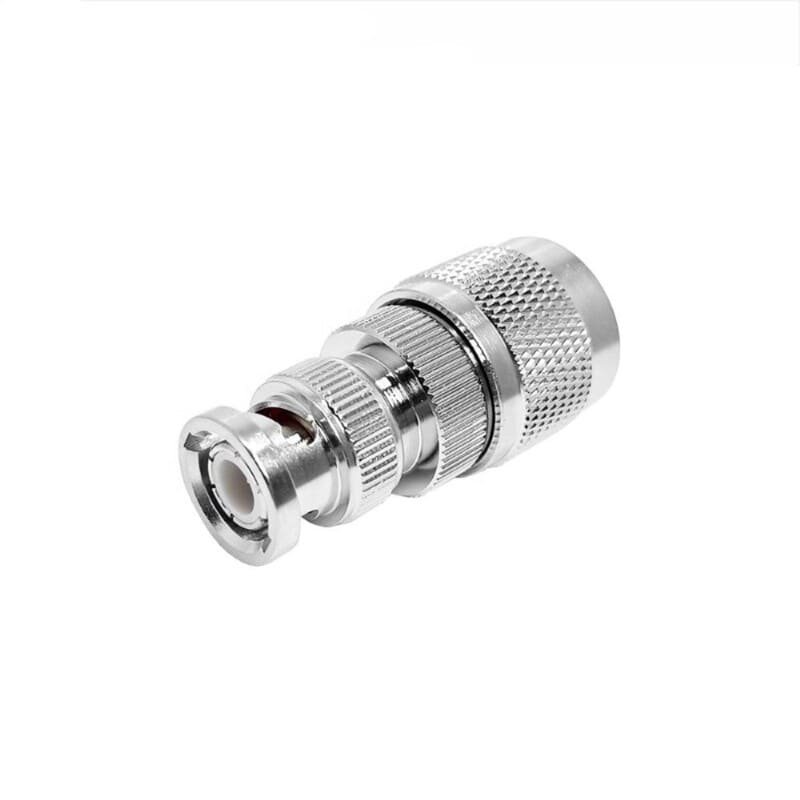

BNC Male to N Male Adapter

BNC Male to N Male RF Coaxial Adapter – Low Loss Test & Communications Connector (DC-6 GHz, 50 Ohm)

The BNC Male to N Male Adapter is the essential low-loss solution for precision linking a BNC male interface to an N-Type male interface. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical test & measurement, wireless, and data communication bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand requirements, providing the consistent performance needed for applications where a secure connection between standard BNC and N-Type systems is necessary:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard value for professional RF and test equipment, ensuring optimal component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• BNC to N Adapter (Male-Male)
• BNC Plug to N Plug Adapter
• BNC Male to N Male Connector
• 50 Ohm BNC N Adapter
• N Male to BNC Male Converter
• Low Loss BNC N Connector
• Adapter for N Male Cable to BNC Male Device
• Connecting BNC Test Equipment to N-Type Cable
• RF Test Adapter BNC to N
• 6 GHz BNC N Adapter
• BNC N-Type Straight Adapter
• BNC to N for Data Link
• Gold Plated BNC N Connector
• PTFE Insulator Coaxial Adapter
• Adapter for RF Signal Measurement
• Nickel Brass BNC N Connector
• High-Integrity Coaxial Adapter
• DC-6 GHz RF Adapter
• BNC Male to N Male Coupler
• Connecting N-Type Antenna Cable to BNC Device

Applications: Ideal for laboratory testing, adapting BNC output devices to N-Type input devices, connecting broadcast equipment, and in any wireless communication system requiring a male-to-male connection between 50 Ohm BNC and N-Type interfaces.
