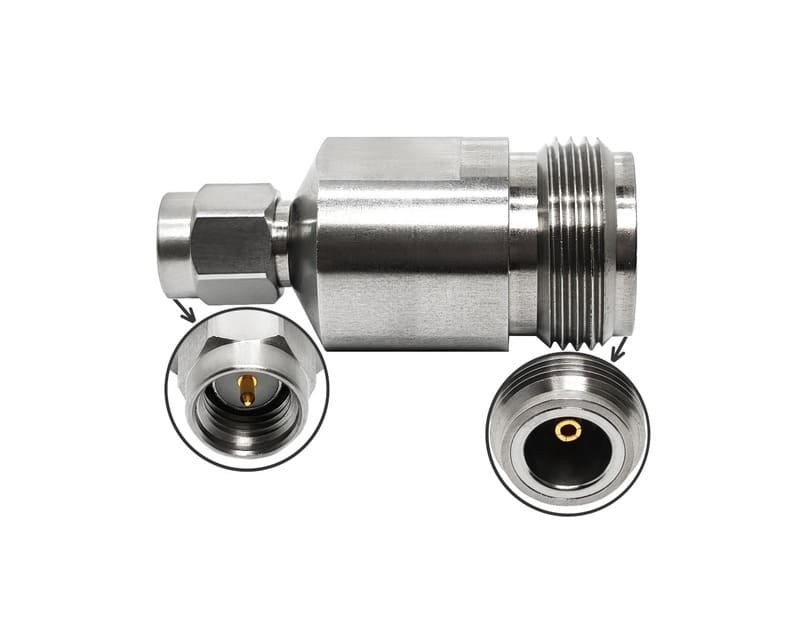

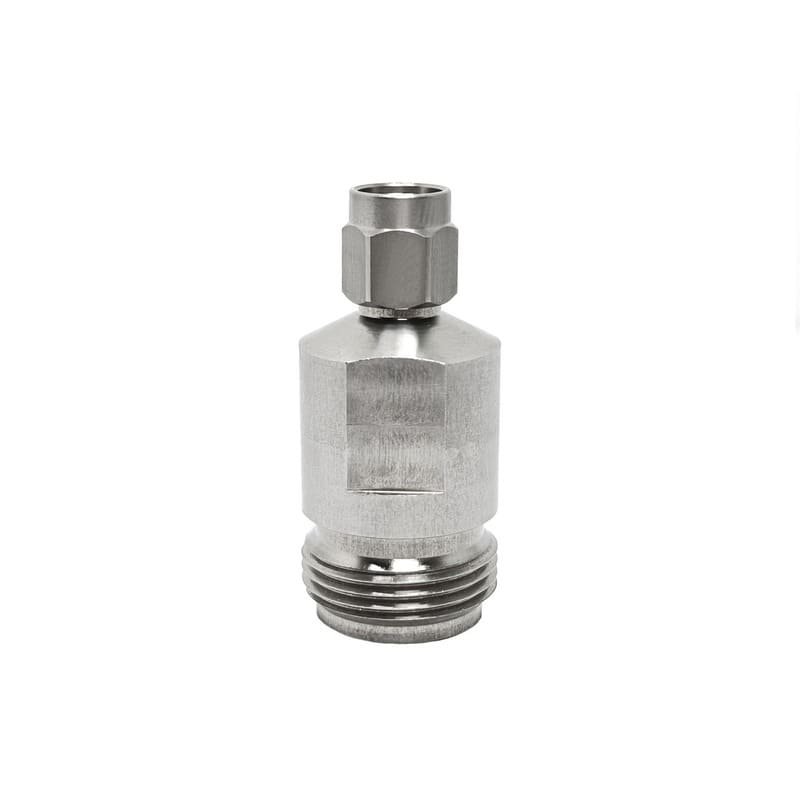

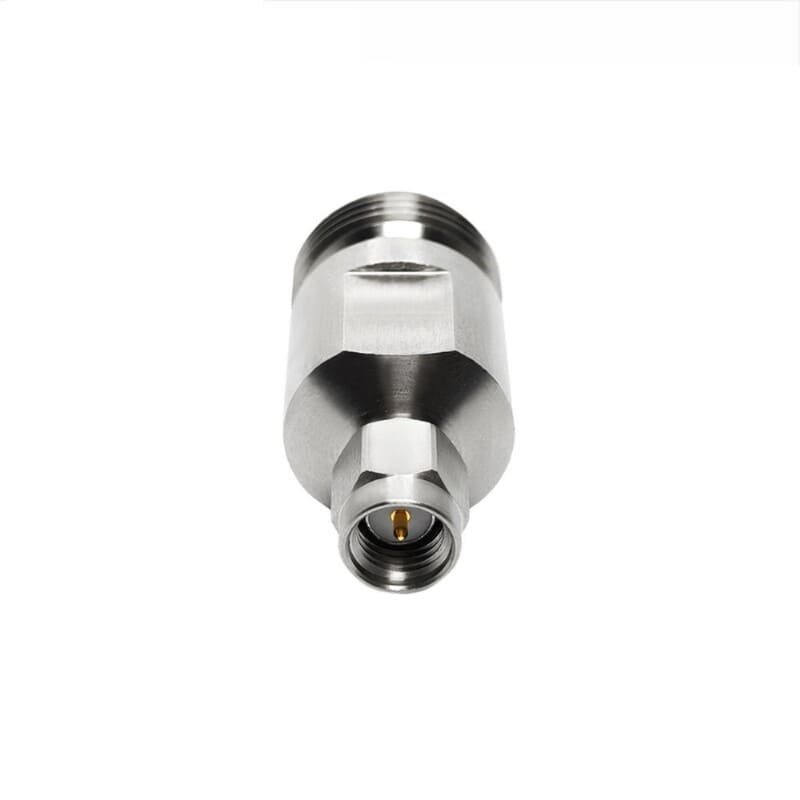

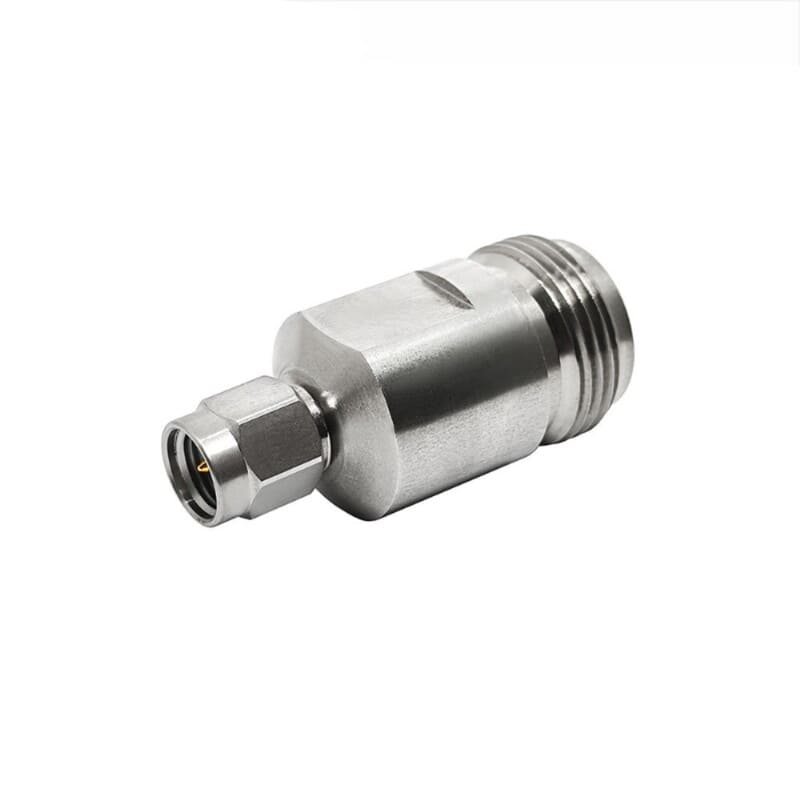

High Frequency N Female to SMA Male Adapter

High Frequency N Female to SMA Male RF Adapter – Precision Test Grade Connector (DC-18 GHz, 50 Ohm)

The High Frequency N Female to SMA Male Adapter is an essential, high-performance solution for precision linking the rugged N-Type interface to the smaller, threaded SMA male interface. Engineered with stainless steel and specialized insulators, this adapter ensures minimal signal degradation and reliable power transfer across critical laboratory, aerospace, and microwave frequency bands up to 18 GHz.

Key Specifications and Microwave Performance

This 50 Ohm adapter is built for the most demanding microwave and RF test requirements, providing extremely consistent performance across an extended frequency range:

• Frequency Range: DC to 18 GHz (Ideal for high-end test and measurement, radar, aerospace, and 5G applications).
• Impedance: 50 Ohms (The industry standard for all professional microwave and RF test equipment).
• VSWR: < 1.2 @ 15 GHz (Exceptional power transfer efficiency across the full microwave band, minimizing internal reflection).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, crucial for precise laboratory measurements).
• Durability: 500 Matings (Guaranteed long-term reliability in repeated laboratory and field testing environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality (Test Grade)

This adapter uses premium, specialized materials necessary for stable operation at microwave frequencies:

• Body Plating: Passivated Stainless Steel provides superior mechanical strength, magnetic stability, and excellent corrosion resistance, vital for high-precision test labs.
• Center Contact: Gold Plated Beryllium Copper ensures stable, superior conductivity, low insertion loss, and resistance to wear, critical for high-frequency measurements.
• Insulator: PEI (Polyetherimide), a specialized high-performance dielectric material used instead of standard PTFE to maintain precise electrical characteristics up to 18 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct precision component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• N Female to SMA Male 18 GHz Adapter
• Precision N to SMA Test Adapter
• 50 Ohm N Female SMA Male Microwave Adapter
• Stainless Steel N SMA Connector
• Adapter for Vector Network Analyzer (VNA)
• N Jack to SMA Plug Adapter
• Low VSWR N SMA 18 GHz
• Microwave Coaxial Adapter N to SMA
• Adapter for Spectrum Analyzer (N Port)
• N Type to SMA Type High Frequency
• Gold Plated Beryllium Copper Contact
• PEI Insulator RF Adapter
• Adapter for Calibration Kit
• Test Lab N SMA Adapter
• DC-18 GHz RF Coupler
• High-Integrity Coaxial Adapter
• N Female to SMA Male Barrel
• Adapter for RF Module Testing
• Connecting N-Type Cable to SMA Antenna
• Precision Test Grade RF Adapter

Applications: Ideal for Microwave Test Benches, Vector Network Analyzers (VNAs), high-frequency Spectrum Analyzers, military and aerospace testing, 5G development, and any laboratory environment requiring stable, 18 GHz performance from a robust adapter.
