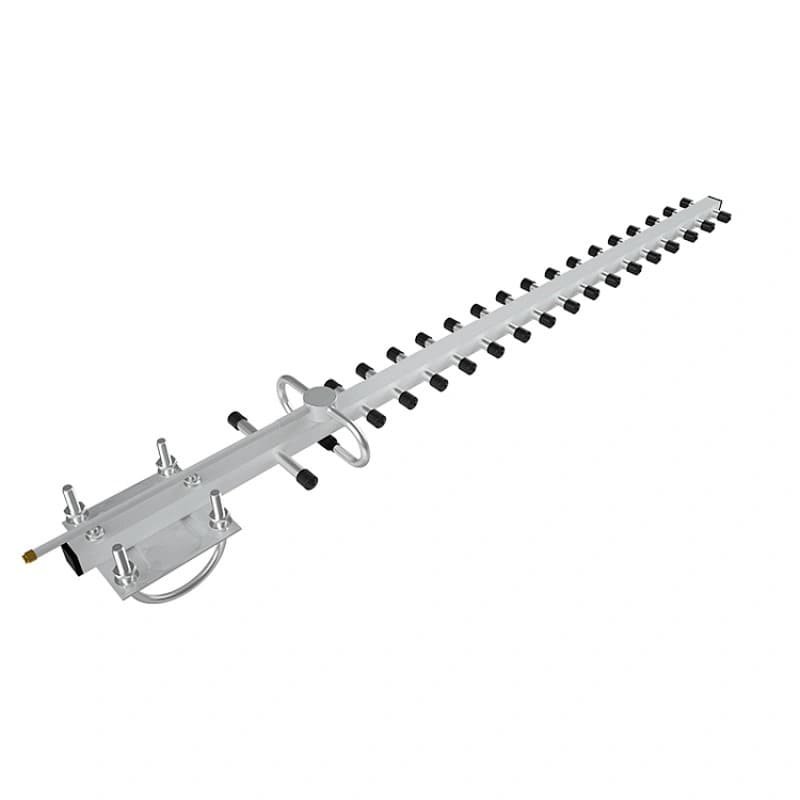

High Gain 18dbi Directional Yagi Antenna with 10m cable 800~2500MHz
₹0.00
This high gain 18DBI directional yagi antenna with connector operates at 2500MHz and ensures robust RF performance. Operating from -20°C to +60°C, it is ROHS compliant and perfect for telecom and outdoor wireless setups.
Product successfully added to the Quote List
High Gain 18dbi Directional Yagi Antenna with 10m cable 8002500MHz
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (800-2500MHz)
This product is designed to operate effectively across the wide frequency range of 800-2500MHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Gain (18dBi)
The Gain of 18dBi indicates the antennas ability to focus signal power in a specific direction. A higher gain value like this suggests improved signal strength and a longer transmission or reception distance in the direction it is pointed.
VSWR ( 1.8)
A low VSWR (Voltage Standing Wave Ratio) of 1.8 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Radiation Pattern (Directional)
This product has a specific characteristic for Radiation Pattern with a value of Directional.
Polarization Type (Vertical)
This product has a specific characteristic for Polarization Type with a value of Vertical.
Max Power (50 W)
This product has a specific characteristic for Max Power with a value of 50 W.
Connector Type (N Type Female)
This product has a specific characteristic for Connector Type with a value of N Type Female.
Size (90700mm)
This product has a specific characteristic for Size with a value of 90700mm.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Cable Legth (10 meters)
This product has a specific characteristic for Cable Legth with a value of 10 meters.
Operating Temperature() (-20 to 60)
This product has a specific characteristic for Operating Temperature() with a value of -20 to 60.
Applications
This antenna is designed for various wireless applications, including cellular network coverage, point-to-point and point-to-multipoint communication, and improving signal strength for cellular modems and other wireless devices. Its wide frequency range makes it highly versatile.
| Frequency Range |
800-2500MHz |
|---|---|
| Impedance |
50Ω |
| Gain |
18dBi |
| VSWR |
≤ 1.8 |
| Radiation Pattern |
Directional |
| Polarization Type |
Vertical |
| Max Power |
50 W |
| Connector Type |
N Type Female |
| Size |
90*700mm |
| Compliance |
ROHS |
| Cable Legth |
10 meters |
| Operating Temperature(℃) |
-20 to +60 |
