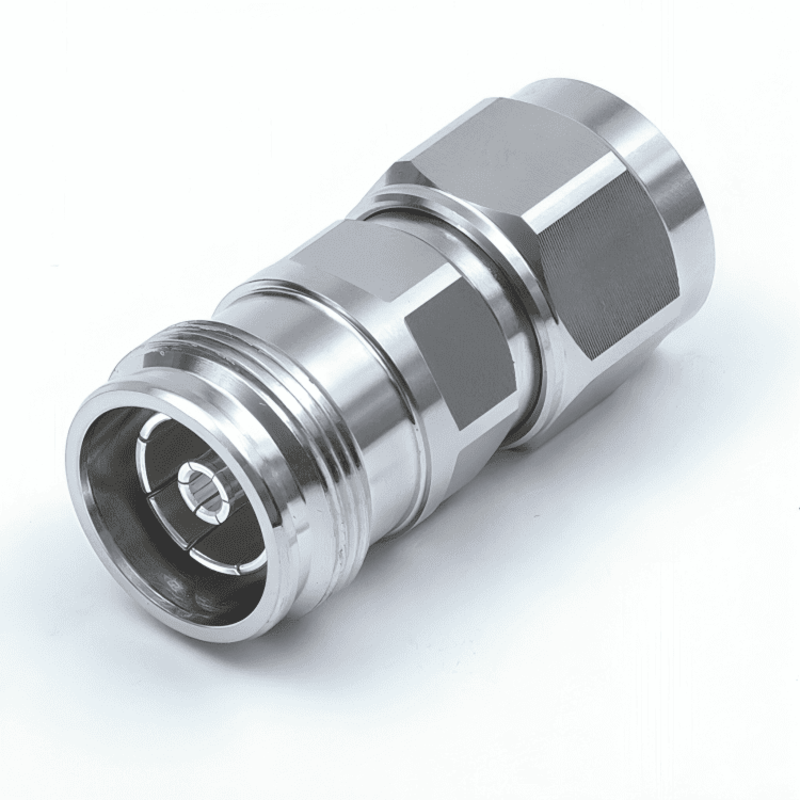

Mini DIN Female to N Male Adapter

Mini DIN Female to N Male RF Adapter – Low PIM Infrastructure Connector (DC-7.5 GHz, 50 Ohm)

The Mini DIN Female to N Male Adapter is the essential low-PIM solution for precision linking the compact Mini DIN interface to the robust N-Type male interface. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical cellular, DAS, and rugged wireless applications.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand, consistent performance, providing a secure connection between Mini DIN and N-Type systems:

• Frequency Range: DC to 7.5 GHz (Extends far beyond traditional cellular bands, supporting 3G, 4G, 5G, and emerging wireless applications).
• Impedance: 50 Ohms (Standard for professional telecom and RF infrastructure, ensuring optimal component matching and low reflection).
• VSWR: < 1.2 @ 6 GHz (Indicates highly efficient power transfer and low signal energy loss, crucial for infrastructure).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in harsh environmental and repeated connection scenarios).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials specifically chosen for superior longevity, high-power handling, and stable electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, robust RF shielding, and high corrosion resistance, ideal for fixed installations.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and power handling.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 7.5 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• Mini DIN to N Male Adapter
• Mini DIN Female to N Plug Connector
• 50 Ohm Mini DIN N Adapter
• Low PIM Adapter Mini DIN to N
• N Male to Mini DIN Female Converter
• Adapter for Small Cell / DAS
• Connecting Mini DIN Device to N-Type Male Cable
• RF Infrastructure Adapter
• 7.5 GHz Mini DIN N Adapter
• Adapter for Base Station Components
• Wireless Base Station Component
• Gold Contact Mini DIN N
• PTFE Insulator Telecom Adapter
• Adapter for High Density Systems
• Nickel Brass Mini DIN Connector
• High-Integrity Coaxial Adapter
• DC-7.5 GHz RF Adapter
• Mini DIN Jack to N Plug Adapter
• Adapter for PIM Testing
• Small Form Factor RF Adapter

Applications: Ideal for Distributed Antenna Systems (DAS), Small Cell deployments, connecting Mini DIN-based radio units or components to N-Type jumper cables or equipment, and in any telecom infrastructure requiring an interface between a Mini DIN Female port and an N Male connection.
