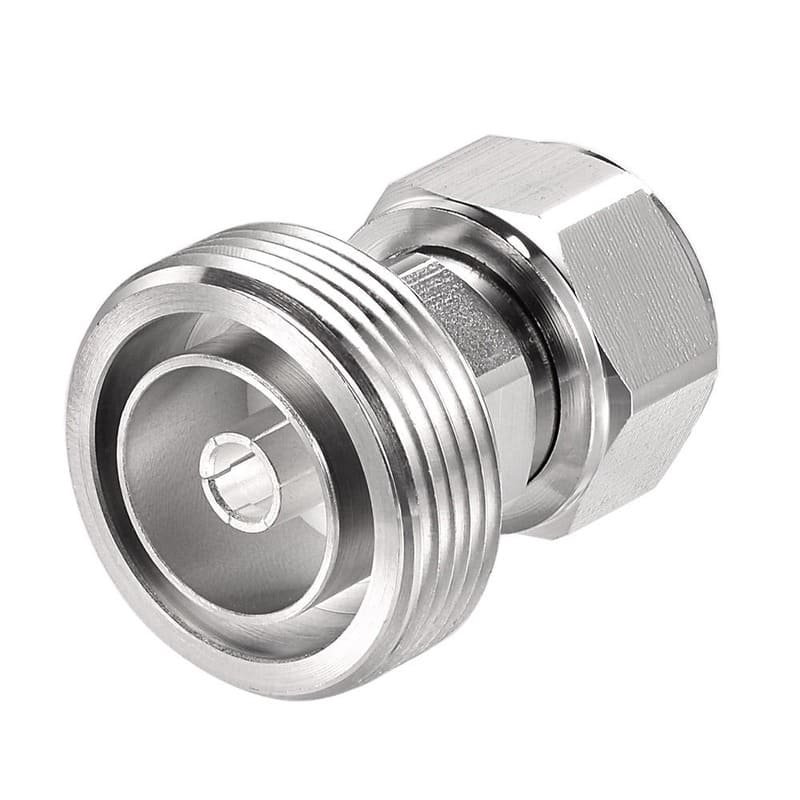

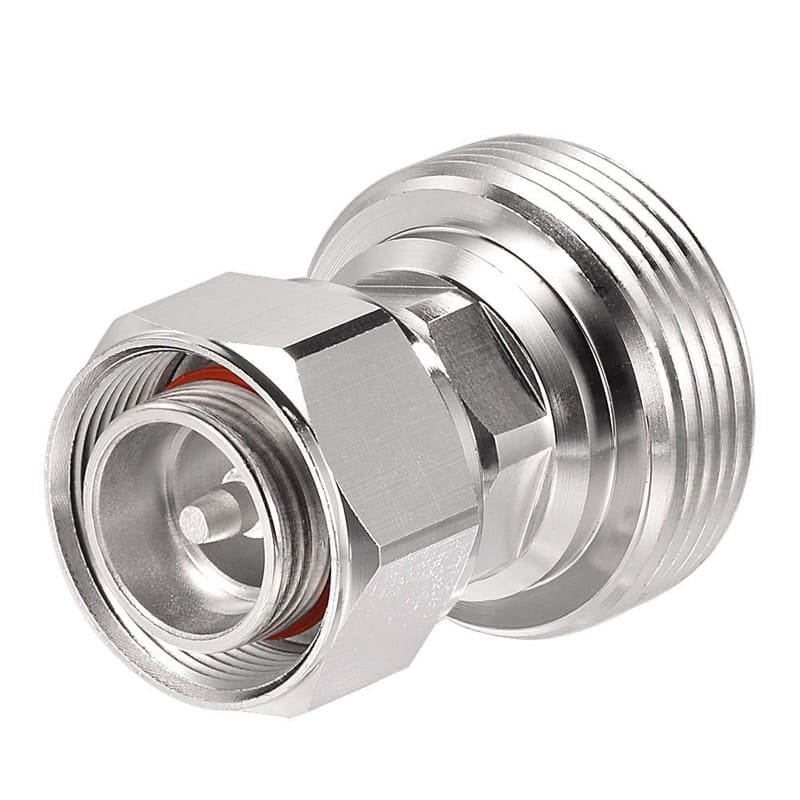

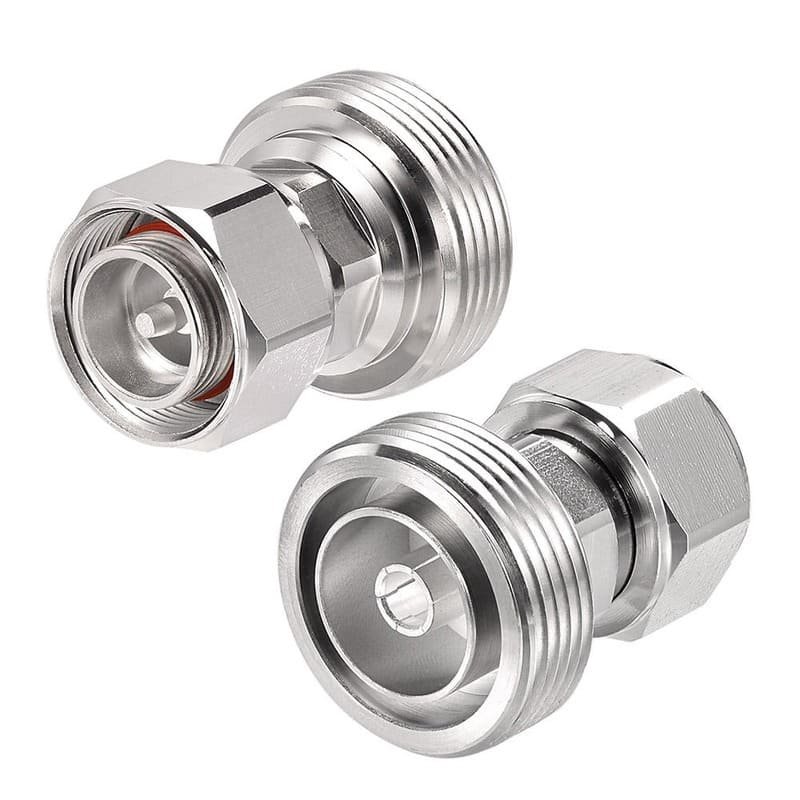

Mini DIN Male to 7/16 DIN Female Adapter

Mini DIN Male to 7/16 DIN Female RF Adapter – Low PIM Infrastructure Connector (DC-7.5 GHz, 50 Ohm)

The Mini DIN Male to 7/16 DIN Female Adapter is the essential low-PIM solution for precision linking the compact Mini DIN male interface to the robust, high-power 7/16 DIN infrastructure port. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical cellular base station, in-building DAS, and dense wireless applications.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand, consistent performance, providing a secure connection between Mini DIN and 7/16 DIN systems:

• Frequency Range: DC to 7.5 GHz (Extends far beyond traditional cellular bands, supporting 3G, 4G, 5G, and emerging wireless applications).
• Impedance: 50 Ohms (Standard for professional telecom and RF infrastructure, ensuring optimal component matching and low reflection).
• VSWR: < 1.2 @ 6 GHz (Indicates highly efficient power transfer and low signal energy loss, crucial for infrastructure).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in harsh environmental and repeated connection scenarios).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials specifically chosen for superior longevity, high-power handling, and stable electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, robust RF shielding, and high corrosion resistance, ideal for outdoor enclosures.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and power handling.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 7.5 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• Mini DIN Male to 7/16 DIN Female Adapter
• Mini DIN Plug to 7/16 DIN Jack Connector
• 50 Ohm Mini DIN 7/16 Adapter
• Low PIM Adapter Mini DIN to 7/16 DIN
• 7/16 DIN Female to Mini DIN Male Converter
• Adapter for DAS Systems/Small Cell
• Connecting Mini DIN Device to 7/16 DIN Feeder Line
• RF Infrastructure Adapter
• 7.5 GHz Mini DIN 7/16 Adapter
• Adapter for Repeater Systems
• Wireless Base Station Component
• Gold Plated DIN Contact
• PTFE Insulator Telecom Adapter
• Adapter for High Density Systems
• Nickel Brass DIN Connector
• High-Integrity Coaxial Adapter
• DC-7.5 GHz RF Adapter
• Mini DIN Plug to 7/16 DIN Jack Coupler
• Adapter for PIM Testing
• Small Form Factor DIN Adapter

Applications: Ideal for Distributed Antenna Systems (DAS), Small Cell deployments, connecting Mini DIN male-terminated cables/devices to 7/16 DIN female equipment ports, and in any telecom infrastructure requiring a high-power interface between these two specific DIN standards.
