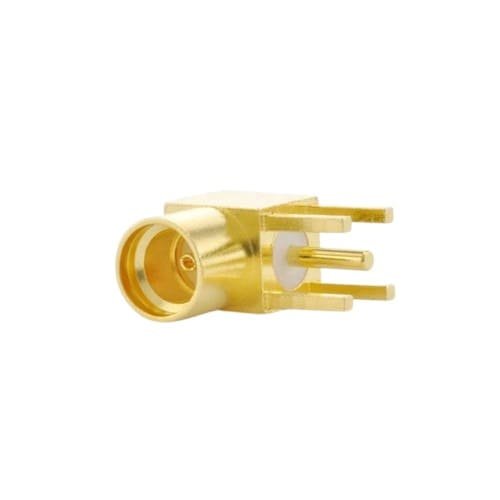

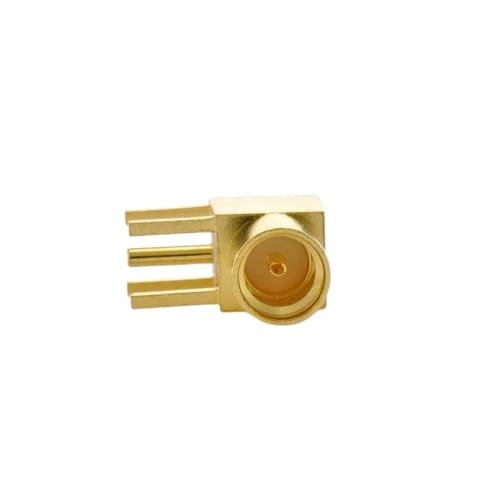

MMCX F RA PCB Mount Without Stand-off
₹61.88
MMCX F RA PCB Mount Without Stand-off is a precision RF connector designed for space-constrained applications. Supports up to 6 GHz frequency. Commonly used in telecom and test systems.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹59.40 | 4% |
| 200-499 | ₹56.93 | 8% |
| 500-999 | ₹55.69 | 10% |
| 1000+ | ₹54.45 | 12% |
MMCX F RA PCB Mount Without Stand-off
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (DC-3 GHz)
This product is designed to operate effectively across the wide frequency range of DC-3 GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Dielectric withsanding V (265 V rms)
This product has a specific characteristic for Dielectric withsanding V with a value of 265 V rms.
Insulation resistance ( 5000 M)
This product has a specific characteristic for Insulation resistance with a value of 5000 M.
Contact resistance (Inner Contact: 1 m; Outer Contact: 0.5 m)
This product has a specific characteristic for Contact resistance with a value of Inner Contact: 1 m; Outer Contact: 0.5 m.
VSWR (1.2)
A low VSWR (Voltage Standing Wave Ratio) of 1.2 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Durability (matings) ( 500)
This product has a specific characteristic for Durability (matings) with a value of 500.
Body and Outer Contacts (Brass, gold plated)
This product has a specific characteristic for Body and Outer Contacts with a value of Brass, gold plated.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (-40 to 90)
This product has a specific characteristic for Operating Temperature() with a value of -40 to 90.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Weight | 0.015 kg |
|---|---|
| Frequency Range |
DC-3 GHz |
| Impedance |
50Ω |
| Dielectric withsanding V |
265 V rms |
| Insulation resistance |
≥ 5000 MΩ |
| Contact resistance |
Inner Contact: ≤1 mΩ; Outer Contact: ≤0.5 mΩ |
| VSWR |
≤1.2 |
| Durability (matings) |
≥ 500 |
| Body and Outer Contacts |
Brass ,gold plated |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-40 to +90 |
