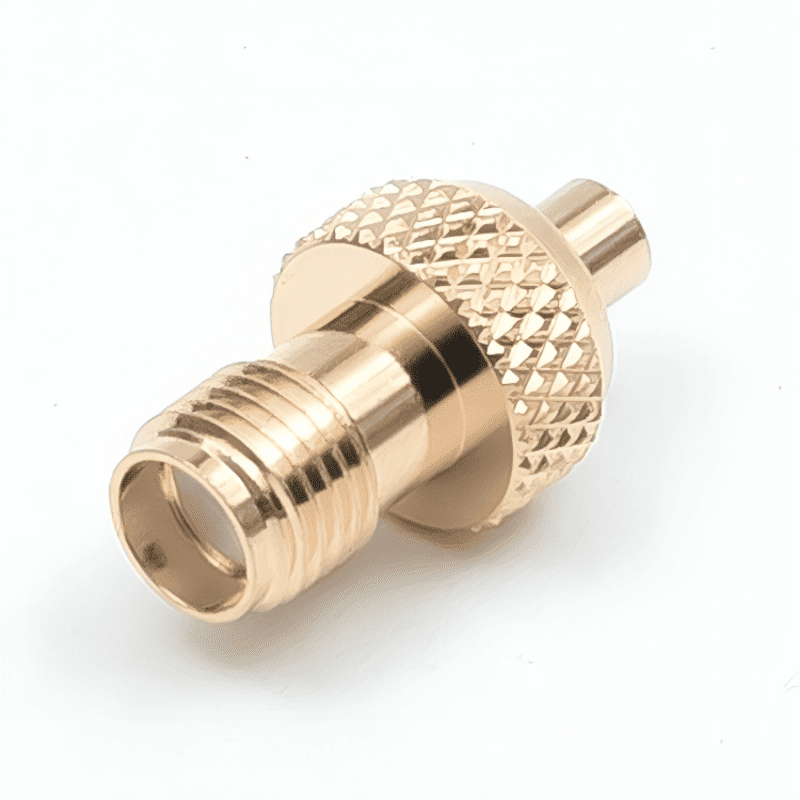

MMCX Female to SMA Female Adapter

MMCX Female to SMA Female RF Adapter – Miniature Low Loss Wireless Connector (DC-6 GHz, 50 Ohm)

The MMCX Female to SMA Female Adapter is the essential low-loss solution for precision linking the miniature, snap-on MMCX interface to the common, threaded SMA female interface. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical GPS, drone, PCB-level, and wireless communication bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand, consistent performance, providing a secure connection between MMCX and SMA systems:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard value for professional RF and test equipment, ensuring optimal component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss, crucial for maintaining signal quality).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials specifically chosen for superior longevity and consistent electrical characteristics in a compact form factor:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and repeated connections.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• MMCX to SMA Adapter (Female-Female)
• MMCX Jack to SMA Jack Connector
• 50 Ohm MMCX SMA Adapter
• Low Loss MMCX to SMA Converter
• SMA Female to MMCX Female Adapter
• Adapter for GPS Receiver (MMCX)
• Connecting MMCX Cable to SMA Cable
• RF Test Adapter MMCX SMA
• 6 GHz MMCX SMA Adapter
• MMCX to SMA for Drone / UAV
• Adapter for Handheld Scanner
• Gold Plated MMCX SMA
• PTFE Insulator Coaxial Adapter
• Adapter for Wireless Modules
• Nickel Brass MMCX Connector
• High-Integrity Coaxial Adapter
• DC-6 GHz Miniature RF Adapter
• MMCX Jack to SMA Jack Coupler
• Adapter for PCB Mount Components
• Sub-Miniature RF Adapter

Applications: Ideal for GPS systems, miniature wireless modems, drone applications, testing circuit boards (PCBs) that use MMCX connectors, and connecting MMCX cables to standard SMA antennas or test equipment.
