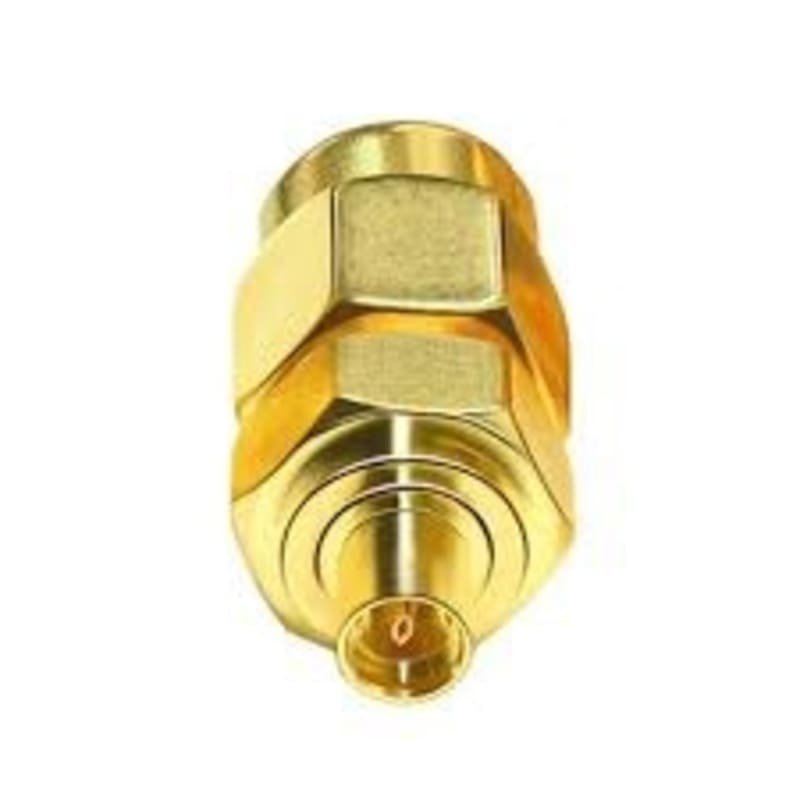

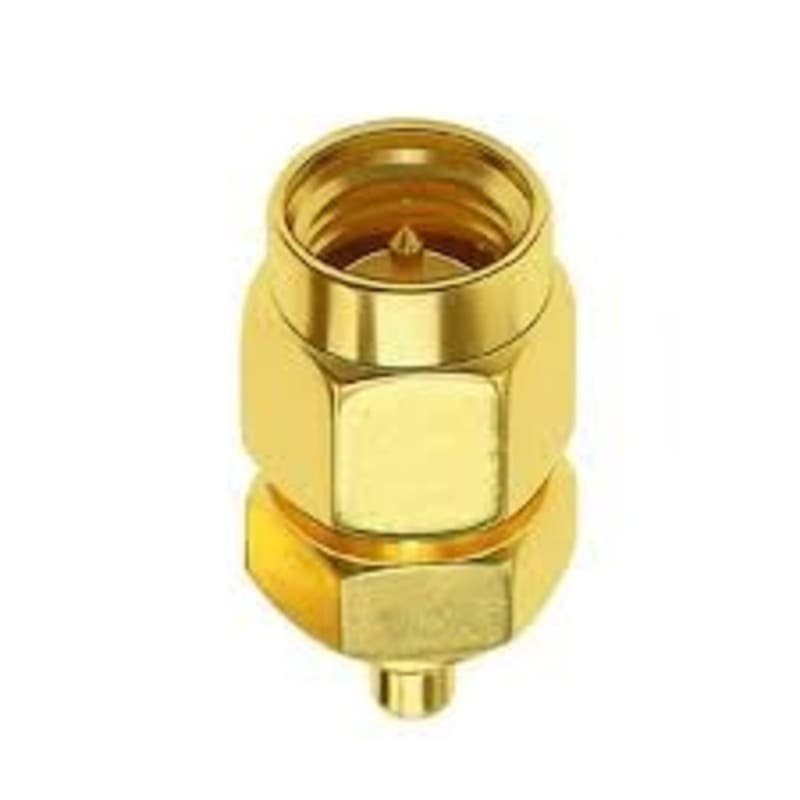

MMCX Male to SMA Male Adapter

MMCX Male to SMA Male RF Adapter – Miniature Low Loss Wireless Connector (DC-6 GHz, 50 Ohm)

The MMCX Male to SMA Male Adapter is the essential low-loss solution for precision linking the miniature, snap-on MMCX Male pin to the common, threaded SMA Male plug. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical GPS, drone, handheld, and wireless communication bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand, consistent performance, providing a secure male-to-male connection between MMCX and SMA systems:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard value for professional RF and test equipment, ensuring optimal component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss, crucial for maintaining signal quality).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials specifically chosen for superior longevity and consistent electrical characteristics in a compact form factor:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and repeated connections.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• MMCX to SMA Adapter (Male-Male)
• MMCX Plug to SMA Plug Connector
• 50 Ohm MMCX SMA Adapter
• Low Loss MMCX to SMA Coupler
• SMA Male to MMCX Male Adapter
• Adapter for GPS Transmitter
• Connecting MMCX Cable to SMA Cable
• RF Test Adapter MMCX SMA (Male-Male)
• 6 GHz MMCX SMA Adapter
• MMCX to SMA for Drone Antenna
• Adapter for Handheld RF Device
• Gold Plated MMCX SMA
• PTFE Insulator Coaxial Adapter
• Adapter for Wireless Modules (Male Output)
• Nickel Brass MMCX Connector
• High-Integrity Male-Male Adapter
• DC-6 GHz Miniature RF Adapter
• MMCX Plug to SMA Plug Coupler
• Adapter for Telemetry Systems
• Sub-Miniature RF Coupler

Applications: Ideal for GPS transmitters, connecting handheld RF devices to external antennas, drone and UAV applications, laboratory testing, and creating male-to-male extensions between MMCX and SMA cables.
