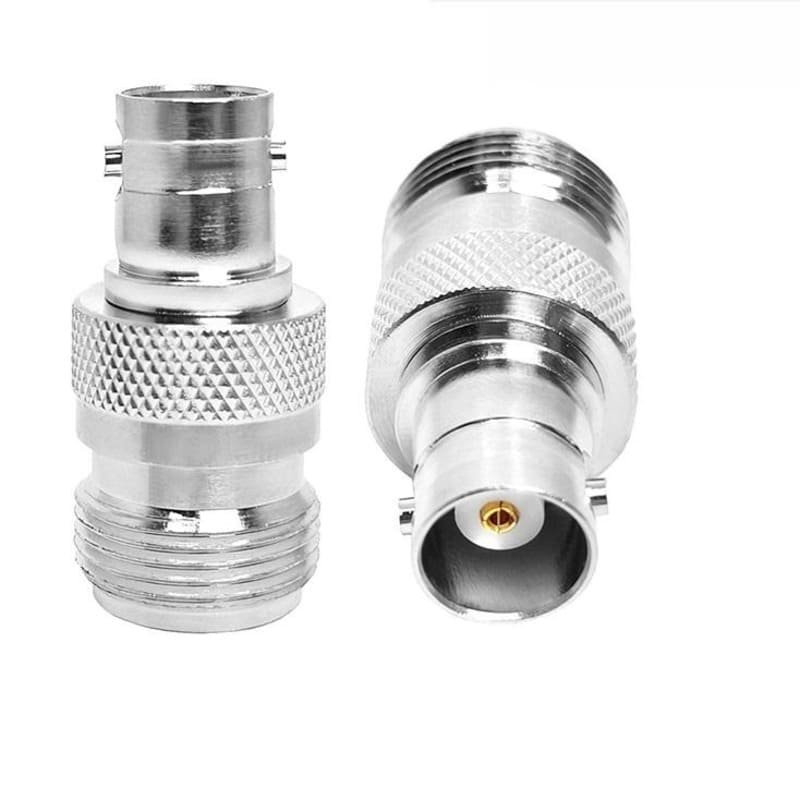

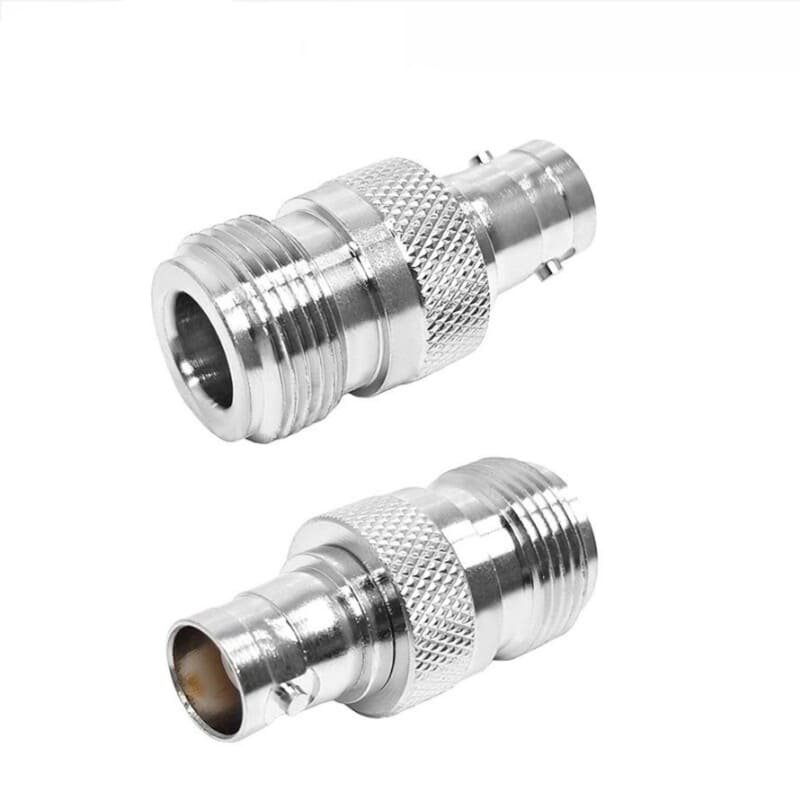

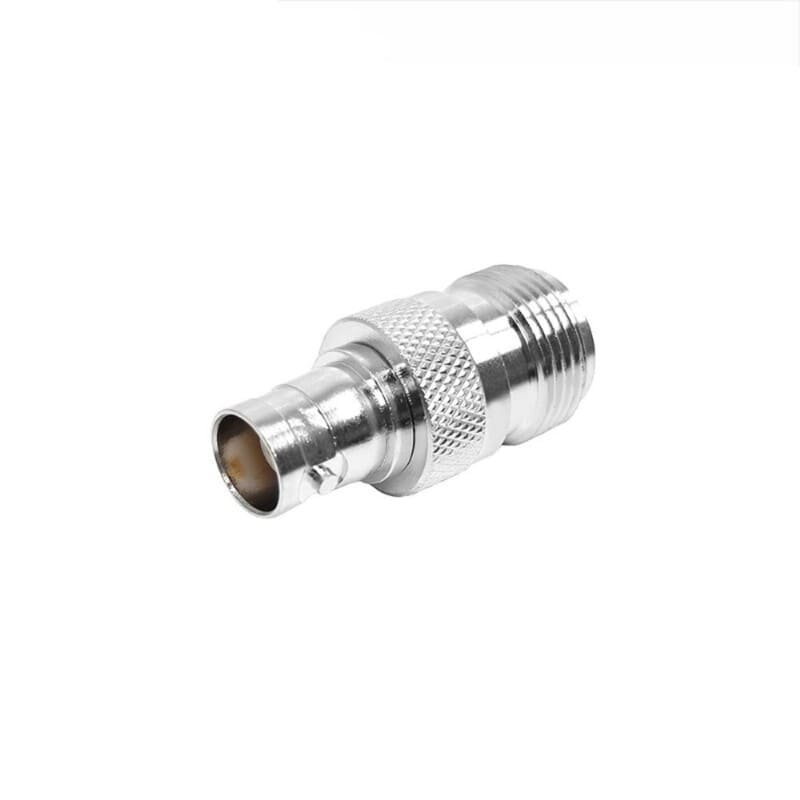

N Female to BNC Female Adapter

N Female to BNC Female RF Coaxial Adapter – Low Loss Test & Communications Connector (DC-6 GHz, 50 Ohm)

The N Female to BNC Female Adapter is the essential low-loss solution for precision linking the robust N-Type interface to the quick-connect BNC interface. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical test & measurement, wireless, and professional video bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand requirements, providing the consistent performance needed for applications where a secure connection between N-Type and BNC systems is necessary:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard value for professional RF and test equipment, ensuring optimal component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• N to BNC Adapter (Female-Female)
• N Jack to BNC Jack Adapter
• N Female to BNC Female Connector
• 50 Ohm N BNC Adapter
• BNC Female to N Female Converter
• Low Loss N BNC Coupler
• Adapter for RF Test Equipment (N port)
• Connecting N-Type Cable to BNC Receiver
• RF Test Adapter N to BNC
• 6 GHz N BNC Adapter
• N BNC Barrel Connector
• Adapter for Oscilloscope (BNC input)
• Gold Plated N BNC Connector
• PTFE Insulator Coaxial Adapter
• Adapter for Professional Video Equipment
• Nickel Brass N BNC Connector
• High-Integrity Coaxial Adapter
• DC-6 GHz RF Adapter
• N Female to BNC Female Coupler
• Adapter for Antenna Feed to BNC Device

Applications: Ideal for laboratory testing, adapting N-Type antenna cables or feeder lines to BNC input ports on test equipment (like oscilloscopes and spectrum analyzers), professional CCTV, and broadcast video systems.
