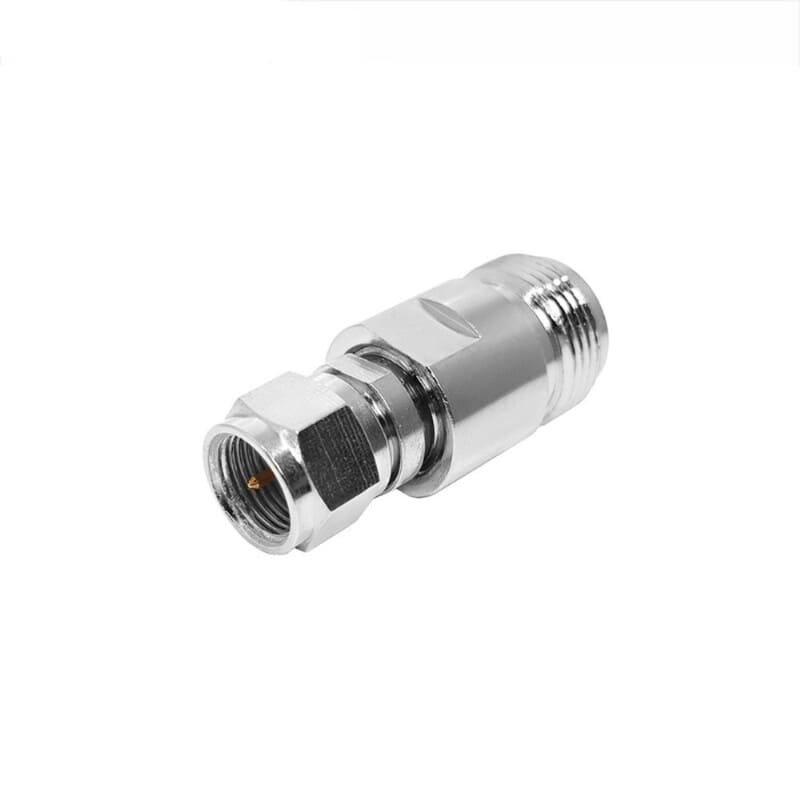

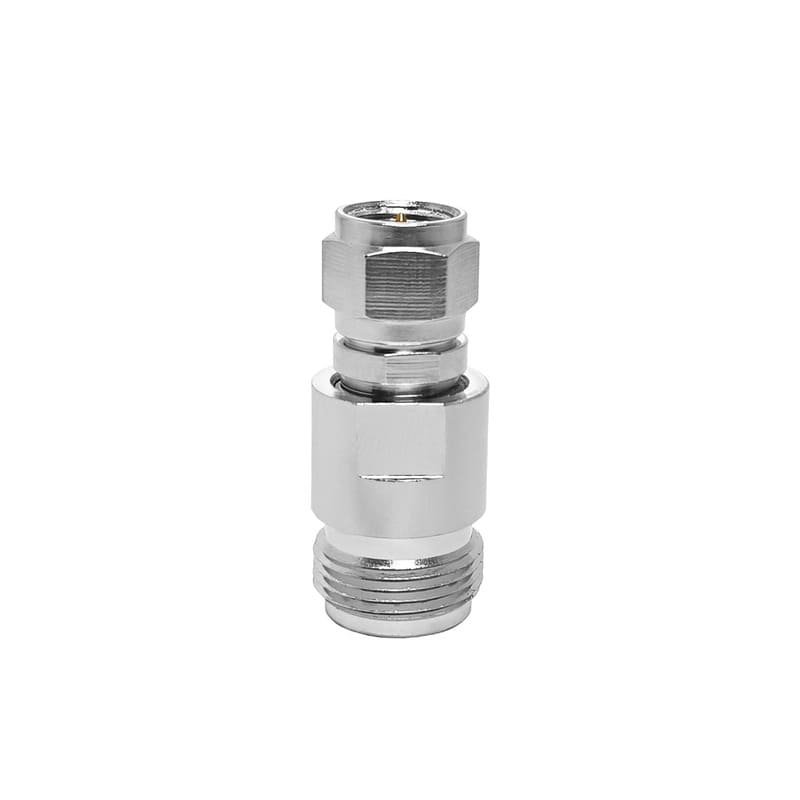

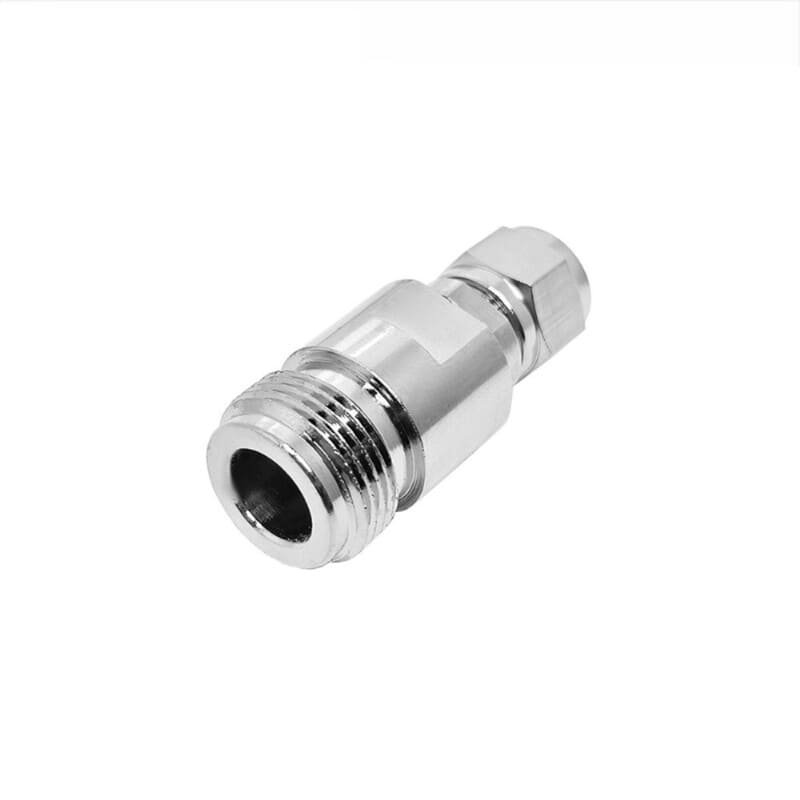

N Female to F Male Adapter

N Female to F Male RF Coaxial Adapter – Low Loss Test & Communications Connector (DC-6 GHz, 50 Ohm)

The N Female to F Male Adapter is the essential low-loss solution for precision linking the robust N-Type interface to the common F-Type male interface. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical test & measurement, wireless, and consumer data bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand requirements, providing the consistent performance needed for applications where a secure connection between N-Type and F-Type systems is necessary:

• Frequency Range: DC to 6 GHz (Supports all current cellular bands, including 3G, 4G, and LTE for versatile network applications).
• Impedance: 50 Ohms (Standard value for professional RF and test equipment, ensuring optimal component matching and minimal signal reflection).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and low signal energy loss).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Phosphor Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

To ensure you find the correct component for your setup, this product is commonly known by these terms and is compatible with the following equipment categories:

• N Female to F Male Adapter
• N Jack to F Plug Connector
• N Type to F Type Adapter
• 50 Ohm N to F Converter
• F Male to N Female Coupler
• Low Loss N F Adapter
• Adapter for F-Type Cable to N Port
• Connecting N-Type Antenna to F-Type Receiver
• RF Test Adapter N to F
• 6 GHz N F Adapter
• N Female to F Male RF Coupler
• Adapter for Satellite/Cable Equipment
• Gold Plated N F Connector
• PTFE Insulator Coaxial Adapter
• Adapter for CATV/MATV Systems
• Nickel Brass N F Connector
• High-Integrity Coaxial Adapter
• DC-6 GHz RF Adapter
• N Jack to F Plug Converter
• Adapter for Security Systems
• Connecting 50 Ohm to 75 Ohm (Note: Impedance mismatch)

Applications: Ideal for test labs, adapting N-Type antenna cables or feeder lines to F-Type inputs on consumer devices (like satellite receivers or modems), professional CCTV systems, and bridging 50 Ohm N-Type equipment to F-Type (75 Ohm nominal) infrastructure (though impedance mismatch must be considered).
