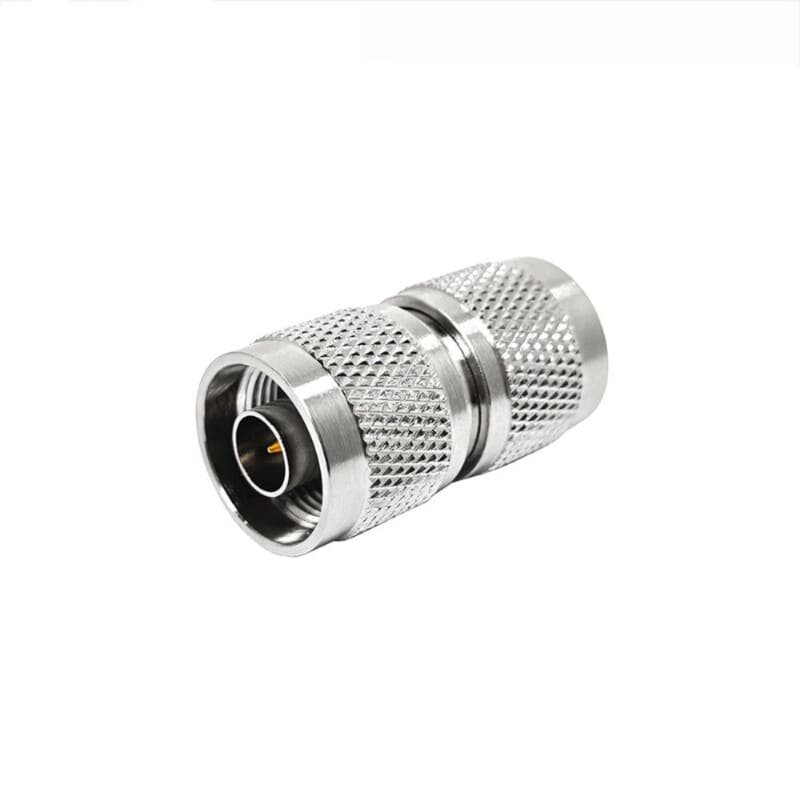

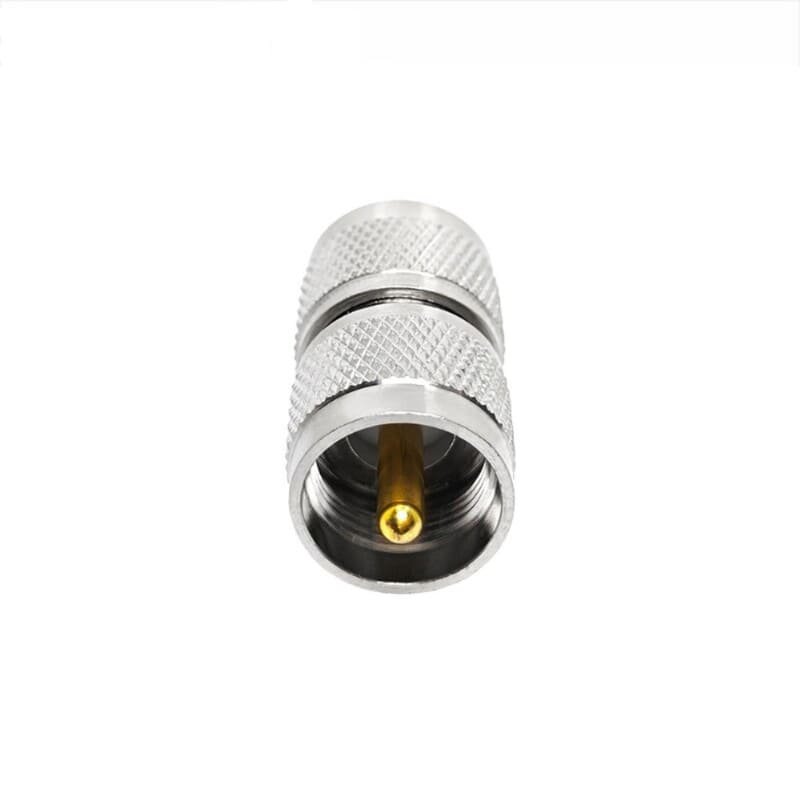

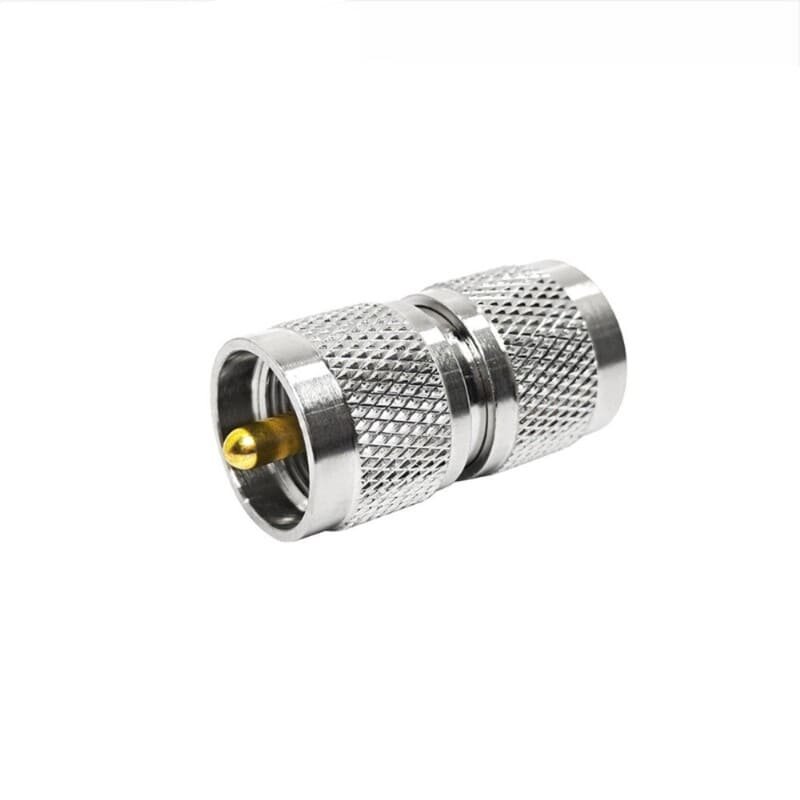

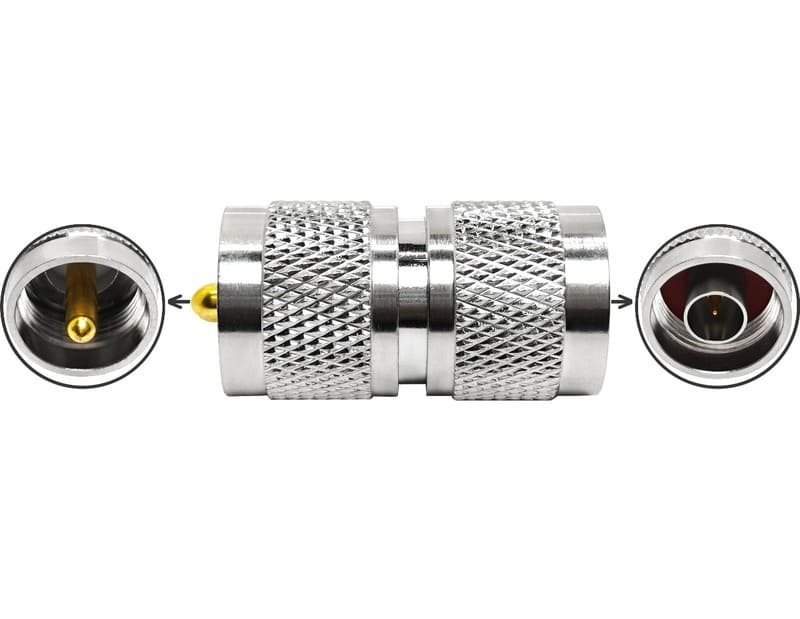

N Male to UHF Male Adapter

N Male to UHF Male (PL-259) RF Coaxial Adapter – Low Loss Ham Radio & Test Connector (DC-6 GHz, 50 Ohm)

The N Male to UHF Male Adapter is the essential low-loss solution for precision linking the rugged N-Type male interface to the common, legacy UHF Male (PL-259) plug. Engineered for minimal signal degradation, this adapter ensures reliable power transfer across critical amateur radio (Ham), legacy communication, and RF testing bands.

Key Specifications and Performance

This 50 Ohm adapter is built for high-demand requirements, providing the consistent performance needed for applications where a secure connection between N-Type and UHF systems is necessary:

• Frequency Range: DC to 6 GHz (Supports modern testing and communications, ensuring versatility beyond typical UHF frequency limits).
• Impedance: 50 Ohms (Crucial for professional RF and test equipment matching, ensuring optimal power transfer).
• VSWR: < 1.2 @ 4 GHz (Indicates highly efficient power transfer and minimal signal energy loss, crucial for signal integrity).
• Insertion Loss: 0.15 dB (Extremely low loss characteristic, maximizing the quality and strength of your signal).
• Durability: 500 Matings (Designed for long-term reliability in field and lab environments).
• Operating Temperature: -20°C to 80°C (Ensures stable performance across diverse climates).
• Compliance: RoHS Compliant (Meets safety and environmental regulations).

Premium Build Quality

This adapter uses high-grade materials for superior longevity and consistent electrical characteristics:

• Body Plating: Nickel Plated Brass provides exceptional mechanical strength, effective RF shielding, and resistance to corrosion.
• Center Contact: Gold Plated Beryllium Copper ensures stable, superior conductivity and resistance to wear, critical for high-frequency performance and repeated connections.
• Insulator: PTFE (Teflon), a high-grade dielectric material used to maintain precise electrical characteristics up to 6 GHz.

Related Search Terms & Equipment Compatibility

This product is often searched for by these aliases and is compatible with the following equipment categories:

• N Male to UHF Male Adapter
• N Plug to PL-259 Plug Connector
• N Type to UHF Type Male-Male Adapter
• 50 Ohm N UHF Adapter
• UHF Male to N Male Converter
• Low Loss N PL-259 Connector
• Adapter for Ham Radio (N to PL-259)
• Connecting N-Type Cable to UHF Cable
• RF Test Adapter N UHF
• 6 GHz N UHF Adapter
• N Male to PL-259 Coupler
• Adapter for Legacy Radio Equipment
• Gold Plated N UHF Connector
• PTFE Insulator Coaxial Adapter
• Adapter for CB Radio
• Nickel Brass N UHF Connector
• High-Integrity Coaxial Adapter
• DC-6 GHz RF Adapter
• N Plug to PL-259 Adapter
• Male-to-Male N UHF Adapter

Applications: Ideal for Amateur Radio (Ham Radio) setups, connecting N-Type output devices (common on modern test equipment or antennas) to UHF/PL-259 input devices or cables, and adapting test equipment for use with UHF systems.
