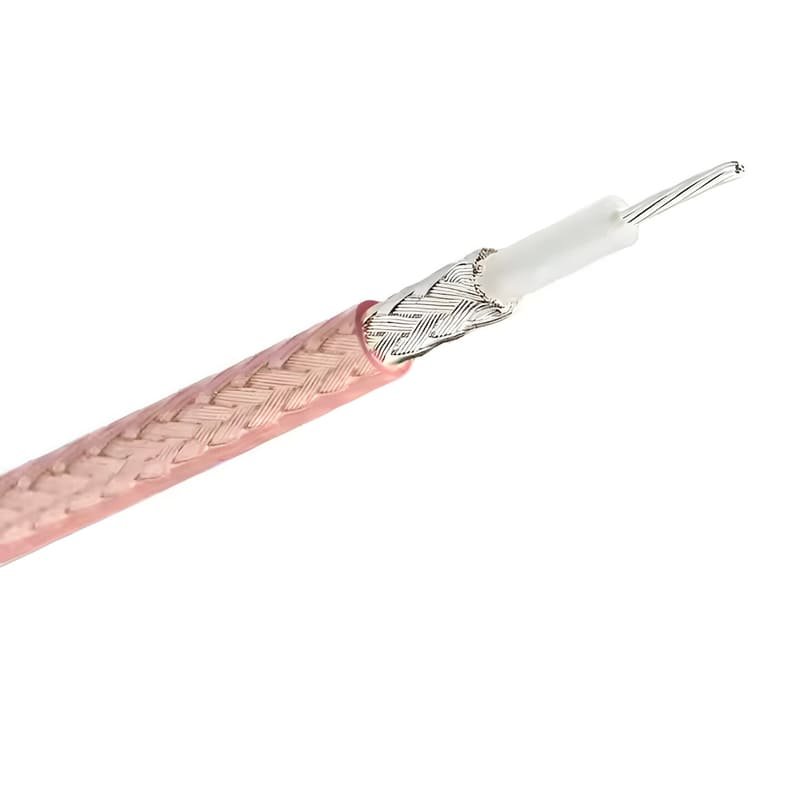

RG-316 Cable
₹129.38
RG-316 Cable is a high-quality coaxial cable ideal for RF signal transmission in TV, telecom, and networking. Excellent shielding and low-loss design.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹124.20 | 4% |
| 200-499 | ₹119.03 | 8% |
| 500-999 | ₹116.44 | 10% |
| 1000+ | ₹113.85 | 12% |
RG-316 Cable
A detailed breakdown of the key specifications and what they mean for this product:
Cable Type (Coaxial Cable)
This product has a specific characteristic for Cable Type with a value of Coaxial Cable.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
Velocity of propagation (69.0 Nom.)
This product has a specific characteristic for Velocity of propagation with a value of 69.0 Nom..
Inner Conductor (Silver Plated Copper)
This product has a specific characteristic for Inner Conductor with a value of Silver Plated Copper.
Dielectric (Solid PTFE)
This product has a specific characteristic for Dielectric with a value of Solid PTFE.
Outer Conductor (Silver Plated Copper Braid)
This product has a specific characteristic for Outer Conductor with a value of Silver Plated Copper Braid.
Jacket (FEP(2.54mm))
This product has a specific characteristic for Jacket with a value of FEP(2.54mm).
Colour (Brown)
This product has a specific characteristic for Colour with a value of Brown.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (-55 to 150)
This product has a specific characteristic for Operating Temperature() with a value of -55 to 150.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Weight | 10 kg |
|---|---|
| Cable Type |
Coaxial Cable |
| Impedance |
50Ω |
| Velocity of propagation |
69.0 % Nom. |
| Inner Conductor |
Silver Plated Copper |
| Dielectric |
Solid PTFE |
| Outer Conductor |
Silver Plated Copper Braid |
| Jacket |
FEP(2.54mm) |
| Colour |
Brown |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-55 to +150 |
