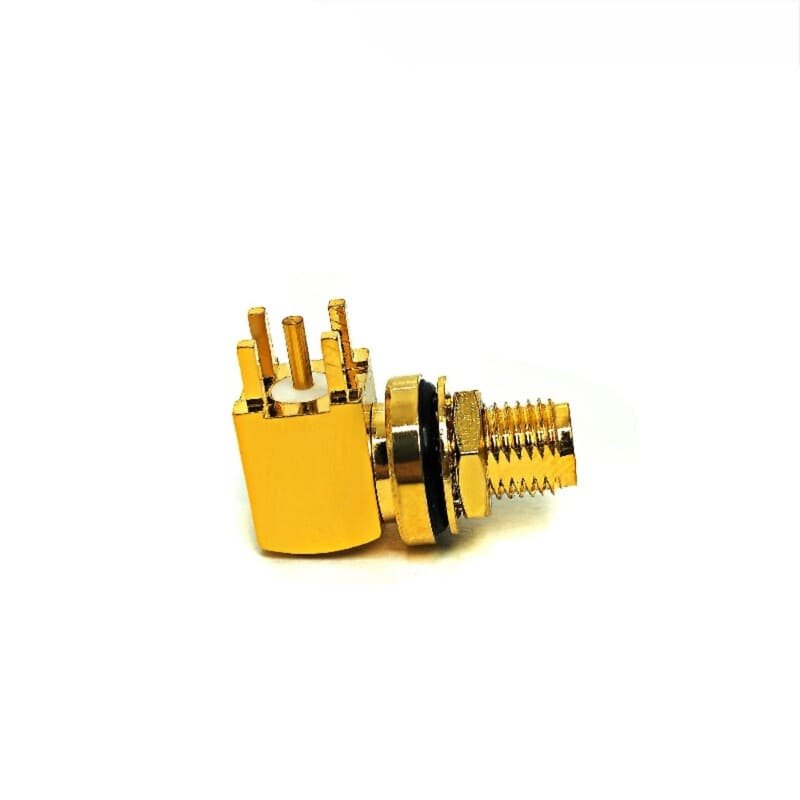

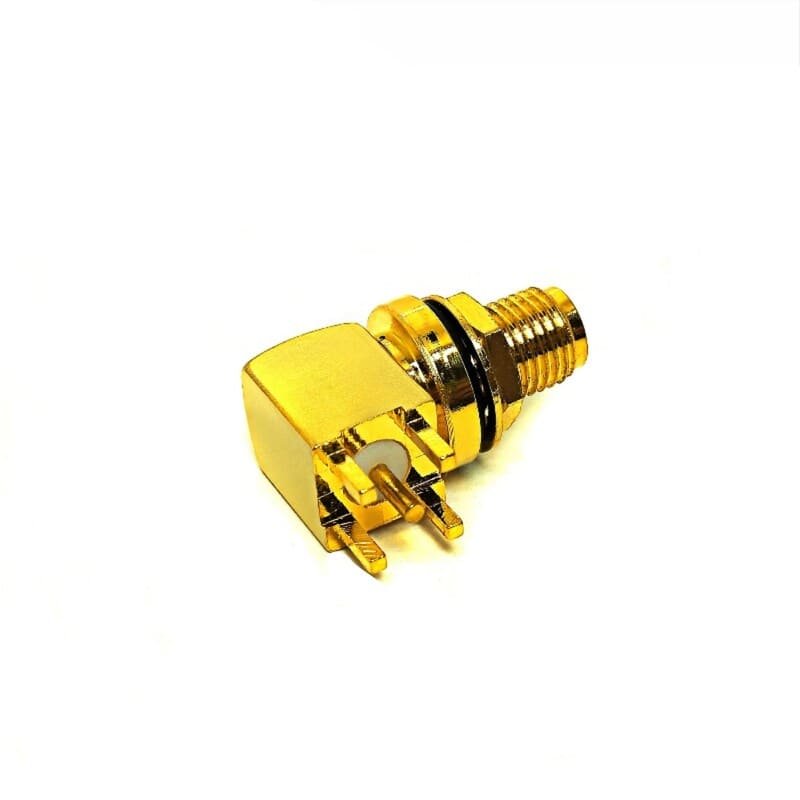

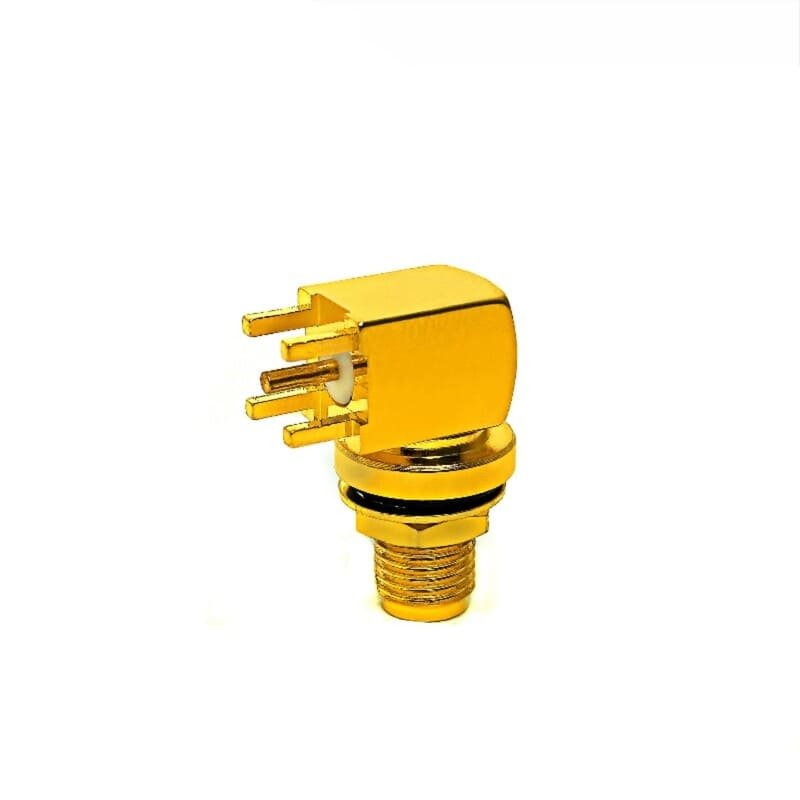

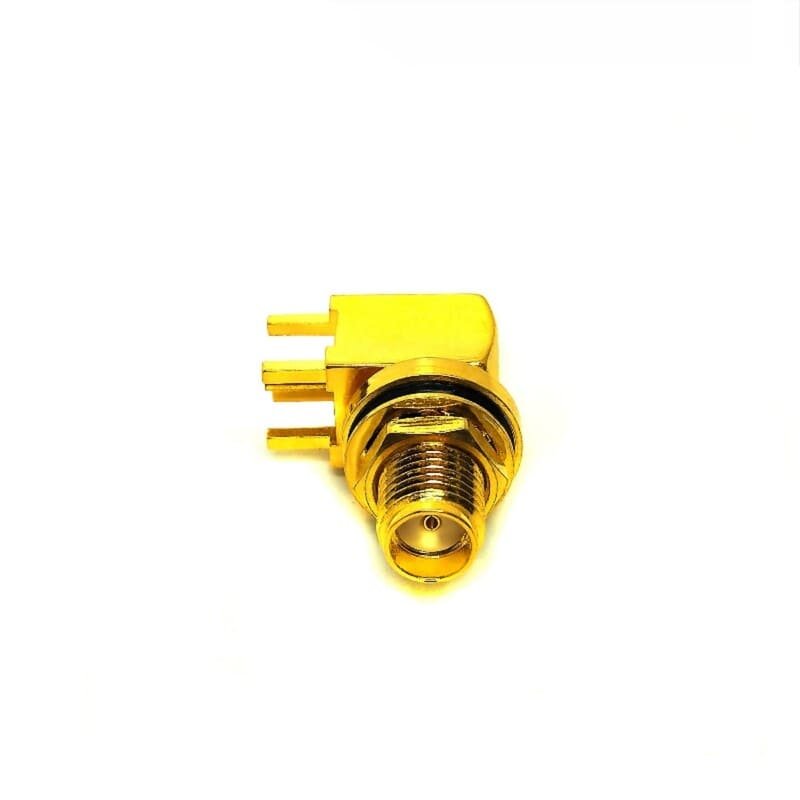

SMA F RA for PCB solder with stand off
Original price was: ₹85.00.₹80.00Current price is: ₹80.00.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹76.80 | 4% |
| 200-499 | ₹73.60 | 8% |
| 500-999 | ₹72.00 | 10% |
| 1000+ | ₹70.40 | 12% |
| Frequency Range |
DC-6 GHz |
|---|---|
| Impedance |
50Ω |
| VSWR |
1.25 max |
| Insulation resistance |
5000 MΩ |
| RF leakage |
-60 dB min |
| Connector Durability (matings) |
500 mating and unmating cycles at 12 cycles per minute |
| Body and Outer Contacts |
Brass ,gold or nickel plated |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-65°C to +165°C |
