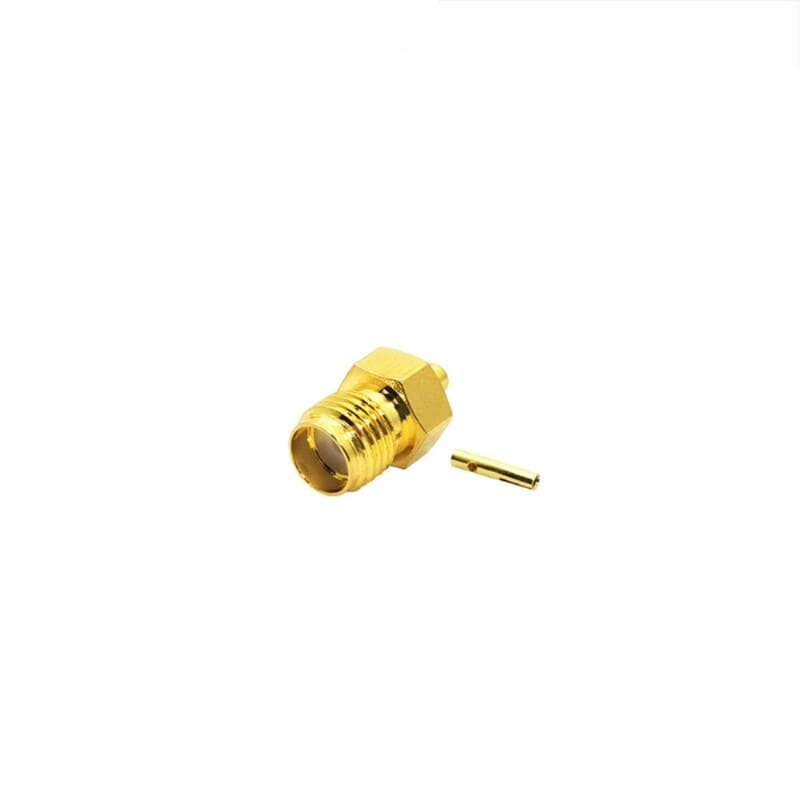

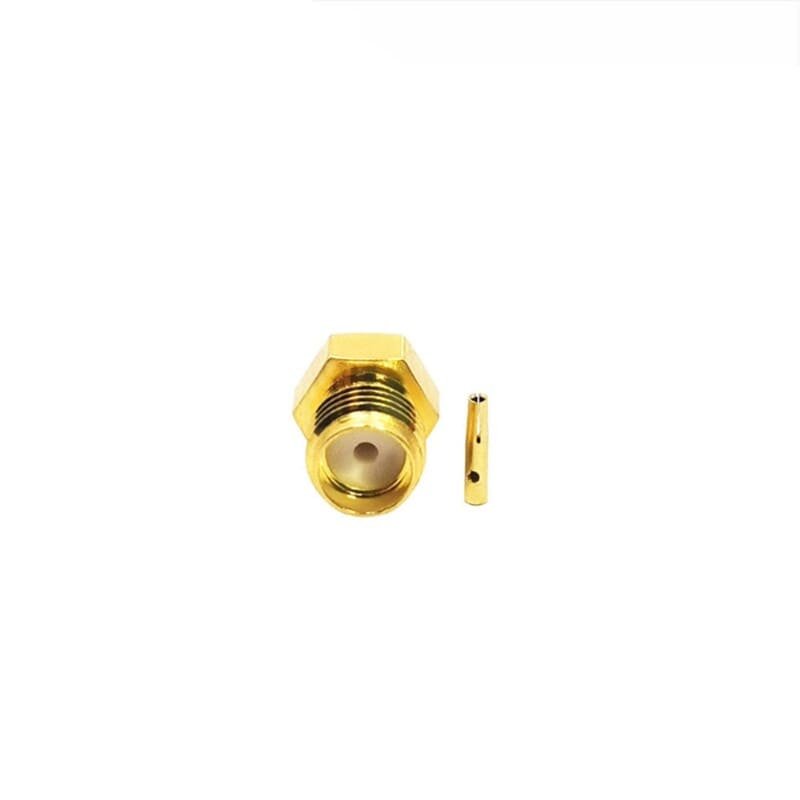

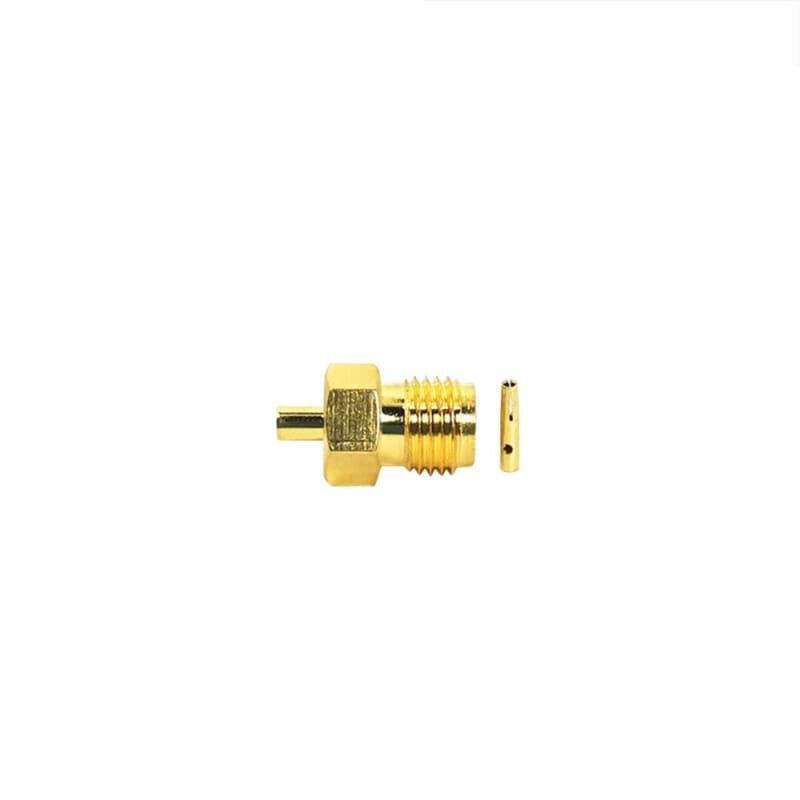

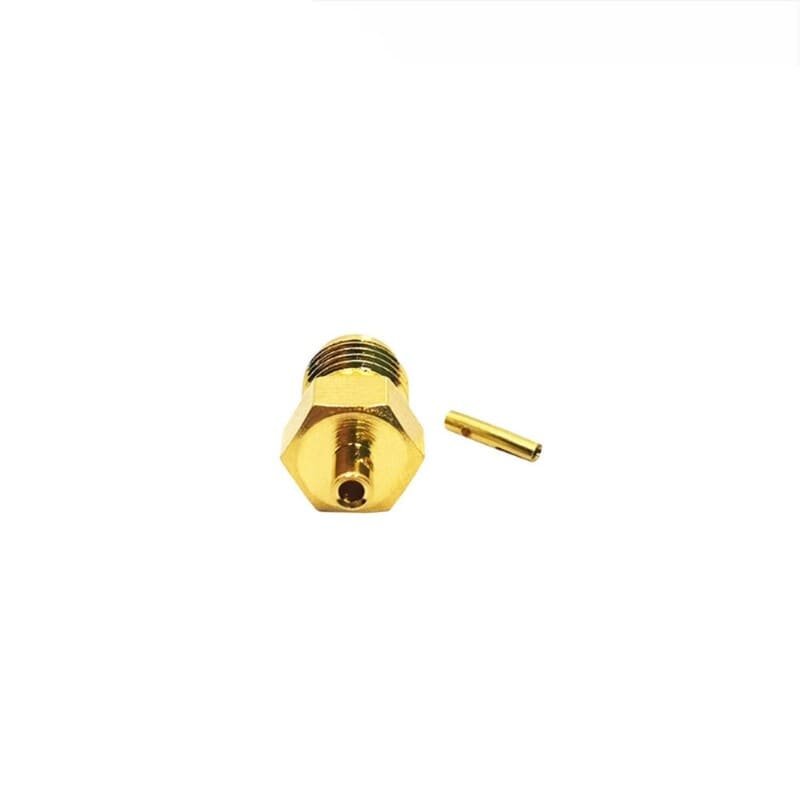

SMA F SOLDER for RG .86 Cable
Original price was: ₹79.69.₹75.00Current price is: ₹75.00.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹72.00 | 4% |
| 200-499 | ₹69.00 | 8% |
| 500-999 | ₹67.50 | 10% |
| 1000+ | ₹66.00 | 12% |
| Frequency Range |
DC-6 GHz |
|---|---|
| Impedance |
50Ω |
| VSWR |
1.2 max |
| Insulation resistance |
5000 MΩ |
| RF leakage |
-60 dB min |
| Connector Durability (matings) |
500 mating and unmating cycles at 12 cycles per minute |
| Body and Outer Contacts |
Brass ,gold or nickel plated |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-65°C to +165°C |
10 reviews for SMA F SOLDER for RG .86 Cable
