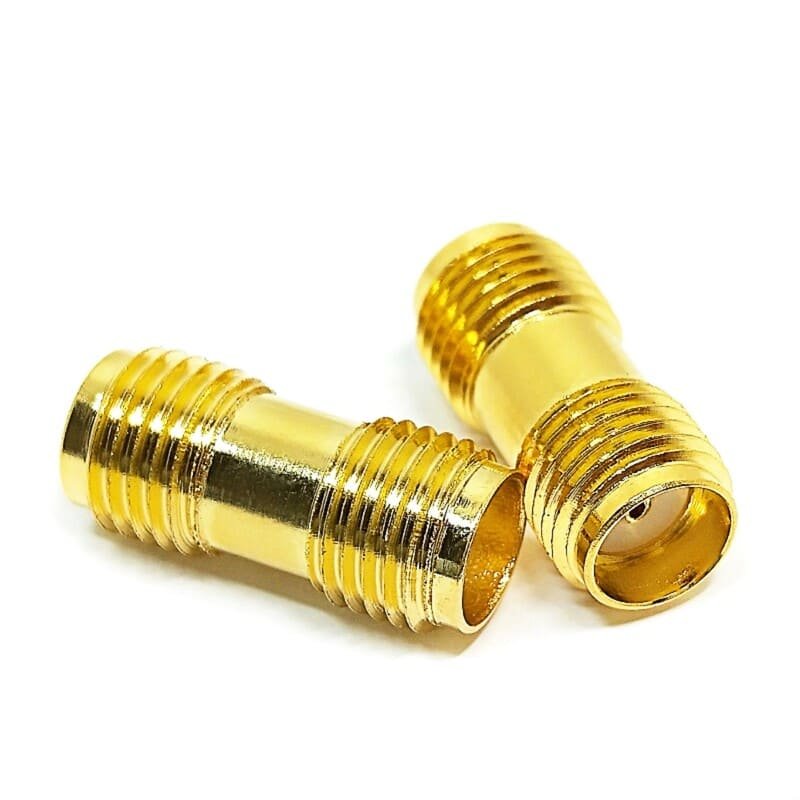

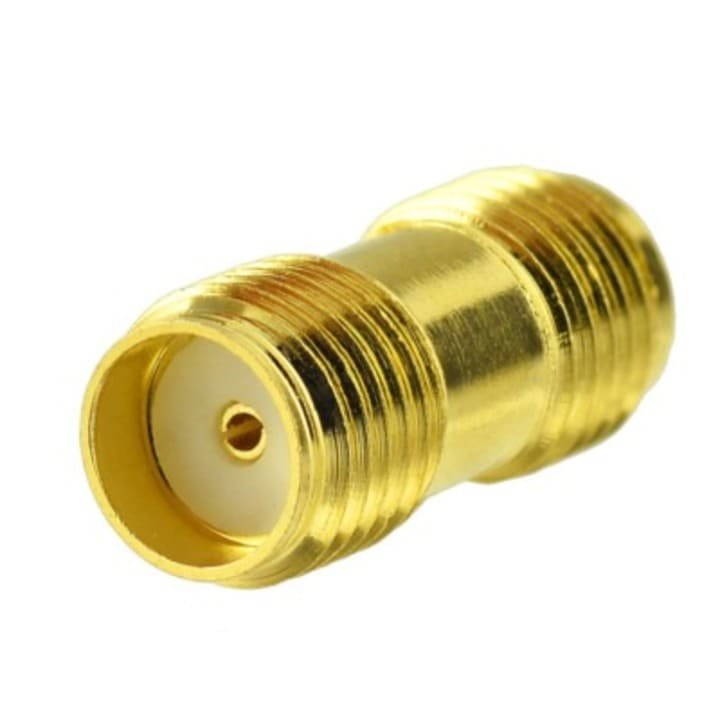

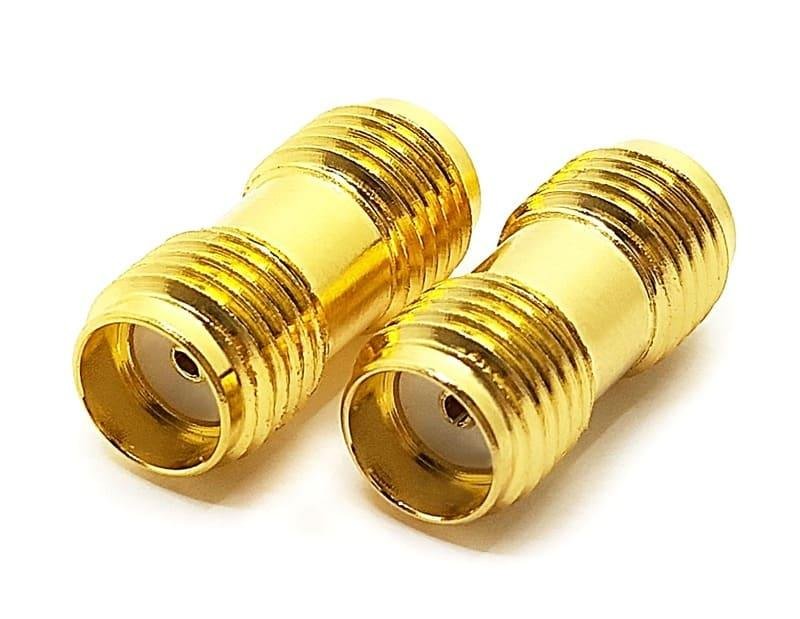

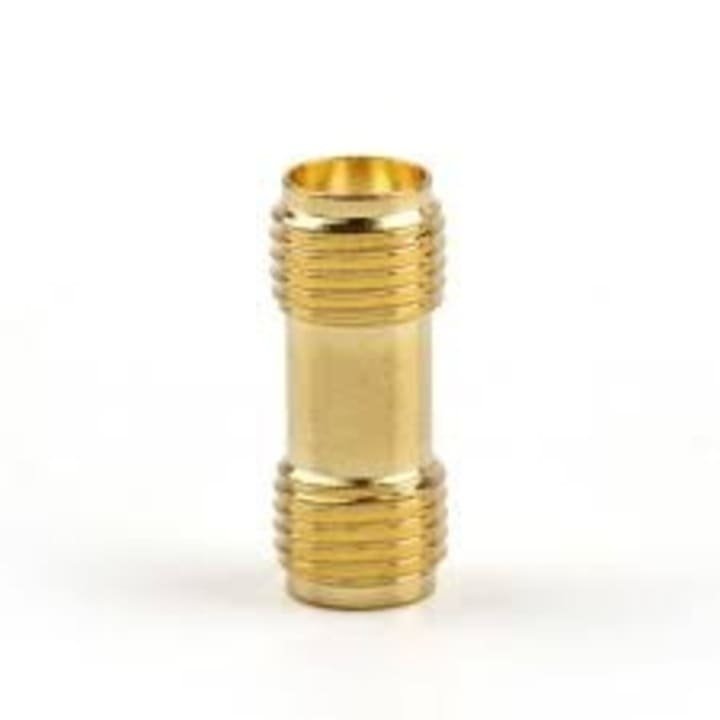

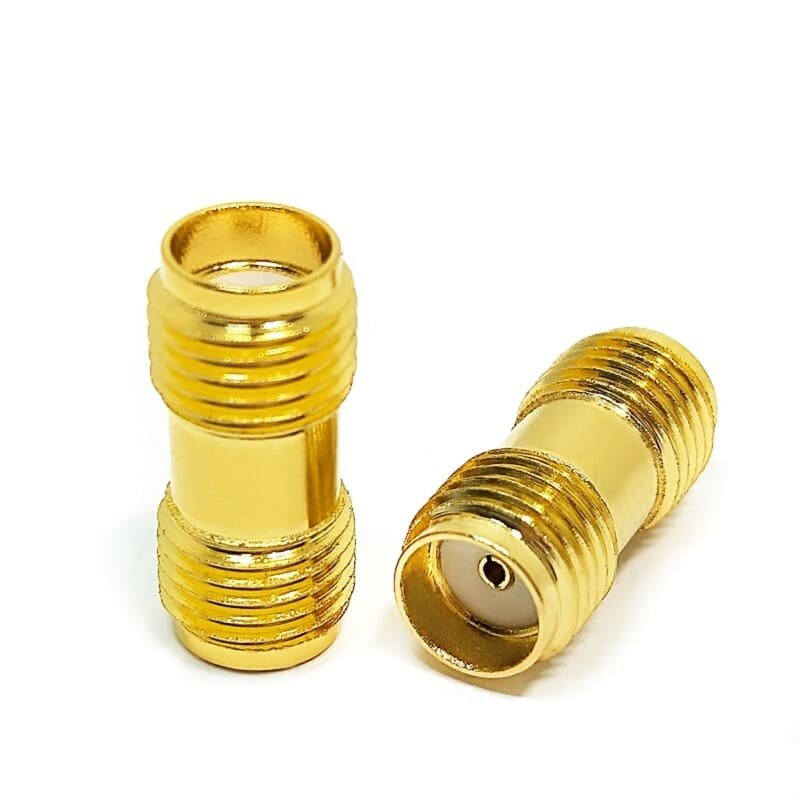

SMA Female to SMA Female Adapter
₹180.00
SMA Female to SMA Female Adapter ensures reliable same-series RF connections with minimal signal loss. Perfect for telecom systems, test benches, and broadcast setups.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹172.80 | 4% |
| 200-499 | ₹165.60 | 8% |
| 500-999 | ₹162.00 | 10% |
| 1000+ | ₹158.40 | 12% |
SMA Female to SMA Female Adapter
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (6 GHz)
This product is designed to operate effectively across the wide frequency range of 6 GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
VSWR ( 1.153GHz)
A low VSWR (Voltage Standing Wave Ratio) of 1.153GHz is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Insertion Loss ( 0.15 dB)
This product has a specific characteristic for Insertion Loss with a value of 0.15 dB.
Body Plating (Brass, Gold plated)
This product has a specific characteristic for Body Plating with a value of Brass, Gold plated.
Center Contact (Gold Plated, Phosphor Copper)
This product has a specific characteristic for Center Contact with a value of Gold Plated, Phosphor Copper.
Insulator (PTFE)
This product has a specific characteristic for Insulator with a value of PTFE.
Durability (matings) (500)
This product has a specific characteristic for Durability (matings) with a value of 500.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (-20 to 80)
This product has a specific characteristic for Operating Temperature() with a value of -20 to 80.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Frequency Range |
6 GHz |
|---|---|
| Impedance |
50Ω |
| VSWR |
≤ 1.15@3GHz |
| Insertion Loss |
≤ 0.15 dB |
| Body & Plating |
Brass ,Gold plated |
| Center Contact |
Gold Plated ,Phosphor Copper |
| Insulator |
PTFE |
| Durability (matings) |
≥500 |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-20 to +80 |
