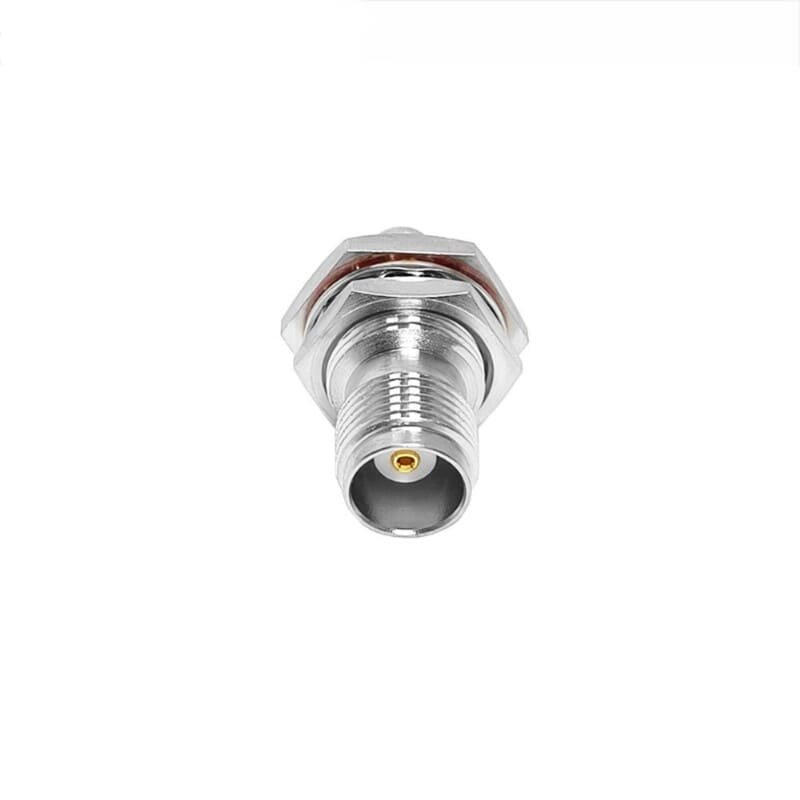

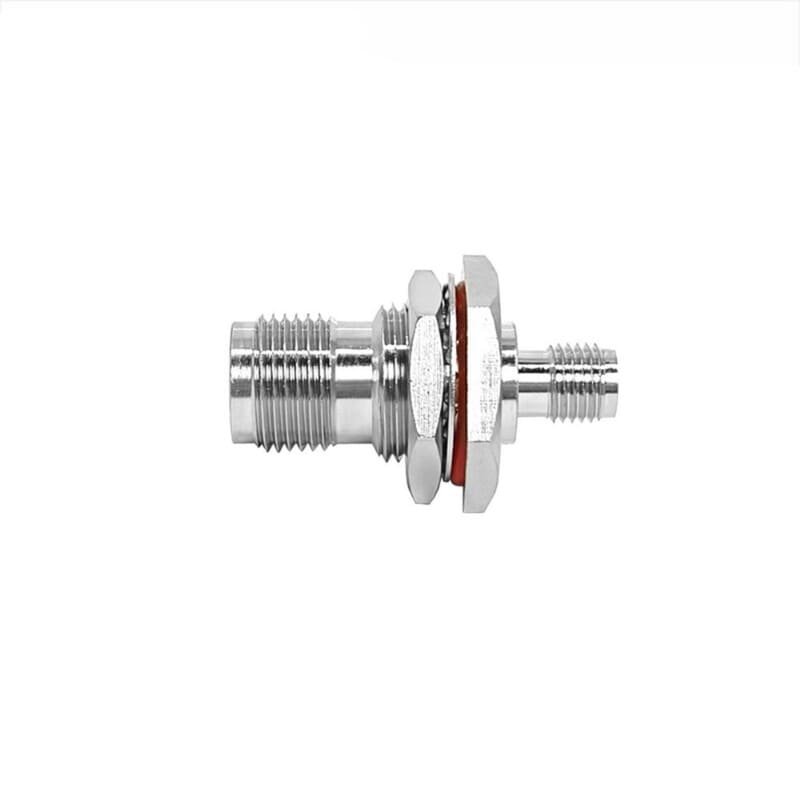

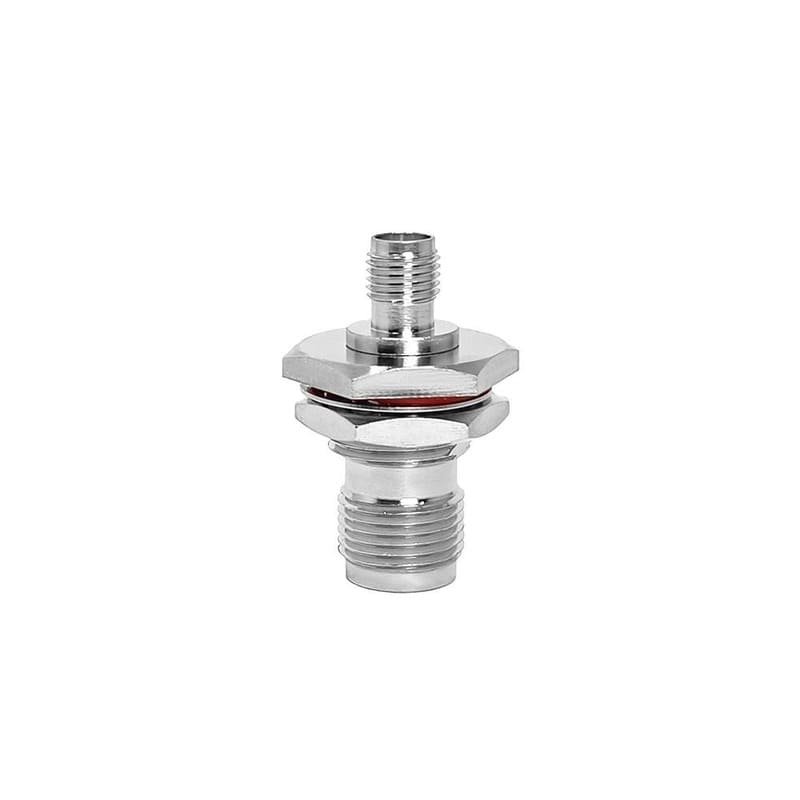

SMA Female to TNC Female BH Adapter
₹210.00
SMA Female to TNC Female BH Adapter connects dissimilar RF connectors with precision. Perfect for telecom, lab testing, and RF systems. Ensures signal integrity and durability.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹201.60 | 4% |
| 200-499 | ₹193.20 | 8% |
| 500-999 | ₹189.00 | 10% |
| 1000+ | ₹184.80 | 12% |
| Frequency Range |
DC-6 GHz |
|---|---|
| Impedance |
50Ω |
| VSWR |
≤ 1.2@4GHz |
| Insertion Loss |
≤0.15 dB |
| Body & Plating |
Brass ,Nickel plated |
| Center Contact |
Gold Plated ,Phosphor Copper |
| Insulator |
PTFE |
| Durability (matings) |
≥500 |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-20 to +80 |
