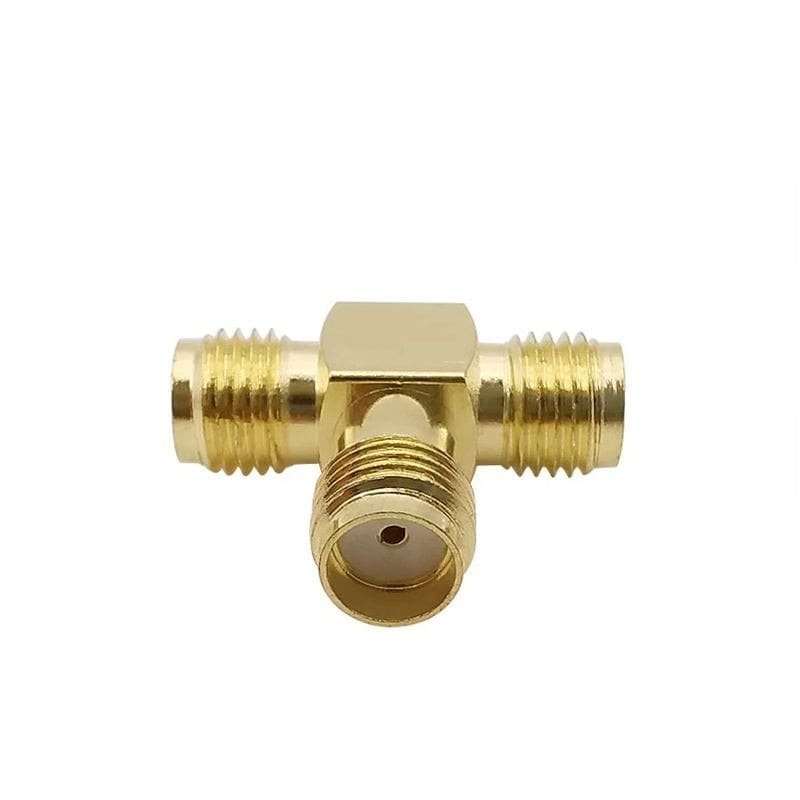

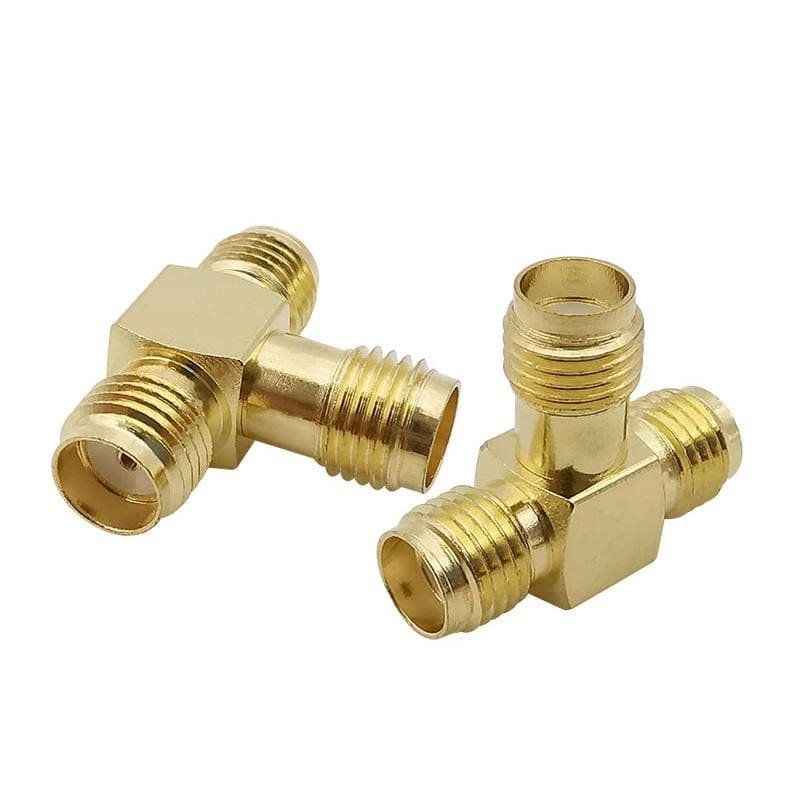

SMA Tee-Type Adaptor (F-F-F), DC to 4 GHz
₹208.13
SMA T-Type Adaptor (F-F-F), DC to 4 GHz provides a compact T-connector solution for splitting or combining RF signals. Operates up to 4 GHz. Suitable for lab and telecom environments.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹199.80 | 4% |
| 200-499 | ₹191.48 | 8% |
| 500-999 | ₹187.32 | 10% |
| 1000+ | ₹183.15 | 12% |
SMA T-Type Adaptor (F-F-F), DC to 4 GHz
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (DC-4GHz)
This product is designed to operate effectively across the wide frequency range of DC-4GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
VSWR (1.5 dB)
A low VSWR (Voltage Standing Wave Ratio) of 1.5 dB is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Insertion Loss (0.12 dB)
This product has a specific characteristic for Insertion Loss with a value of 0.12 dB.
Voltage Rating (500 V rms)
This product has a specific characteristic for Voltage Rating with a value of 500 V rms.
Contact resistance (Center Contact : 2 M?? Outer Contact : 1.5 M)
This product has a specific characteristic for Contact resistance with a value of Center Contact : 2 M?? Outer Contact : 1.5 M.
Durability (500 Mating Cycles)
This product has a specific characteristic for Durability with a value of 500 Mating Cycles.
Body Plating (Brass, Gold plated)
This product has a specific characteristic for Body Plating with a value of Brass, Gold plated.
Insulator (PTFE(Teflon))
This product has a specific characteristic for Insulator with a value of PTFE(Teflon).
Center Pin (Beryllium Copper, Gold Plated)
This product has a specific characteristic for Center Pin with a value of Beryllium Copper, Gold Plated.
Operating Temperature() (-4085)
This product has a specific characteristic for Operating Temperature() with a value of -4085.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Applications
An RF adaptor like this is used to connect two different types of connectors or cables, providing seamless integration between various components in an RF system. It is essential for ensuring compatibility and flexibility during installation and maintenance.
| Frequency Range |
DC-4GHz |
|---|---|
| Impedance |
50Ω |
| VSWR |
≤1.5 dB |
| Insertion Loss |
≤0.12 dB |
| Voltage Rating |
500 V rms |
| Contact resistance |
Center Contact : ≤ 2 MΩ Outer Contact : ≤ 1.5 MΩ |
| Durability |
≥500 Mating Cycles |
| Body & Plating |
Brass ,Gold plated |
| Insulator |
PTFE(Teflon) |
| Center Pin |
Beryllium Copper ,Gold Plated |
| Operating Temperature(℃) |
-40~+85 |
| Compliance |
ROHS |
