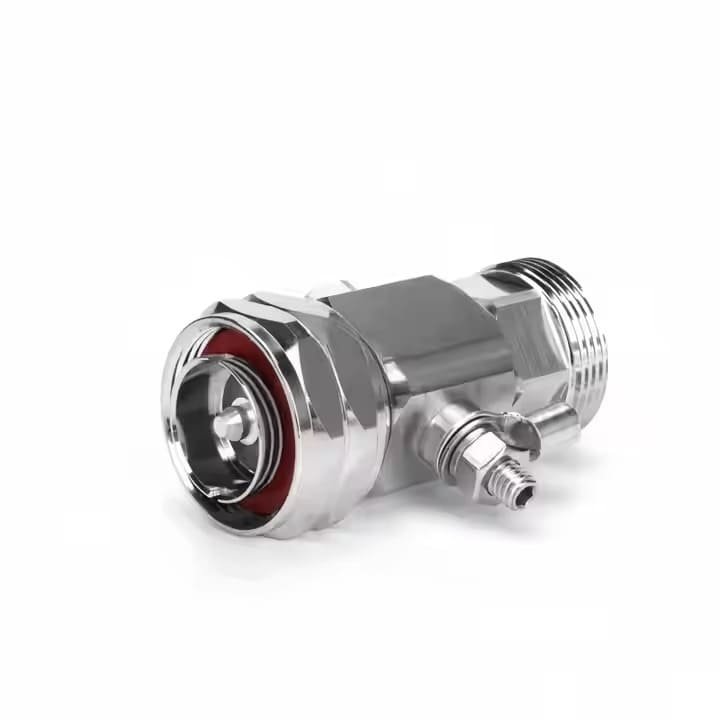

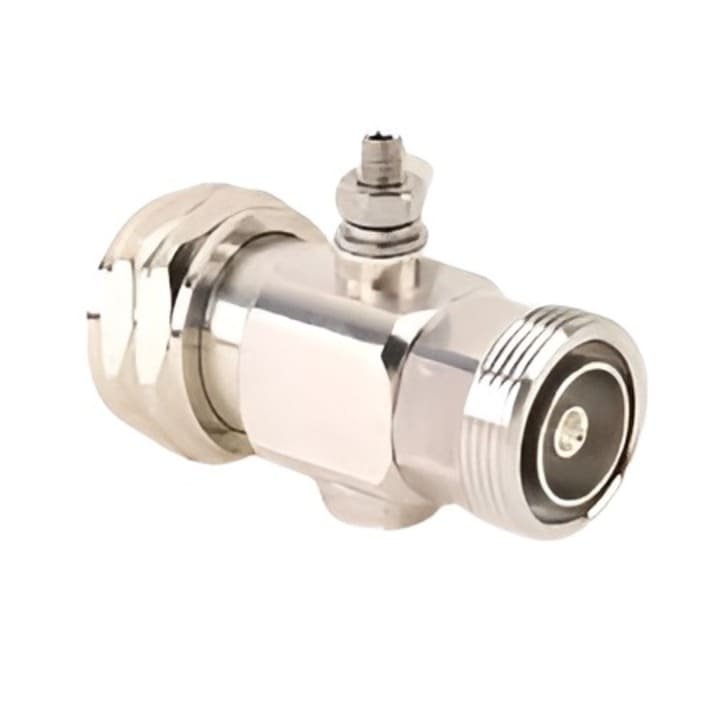

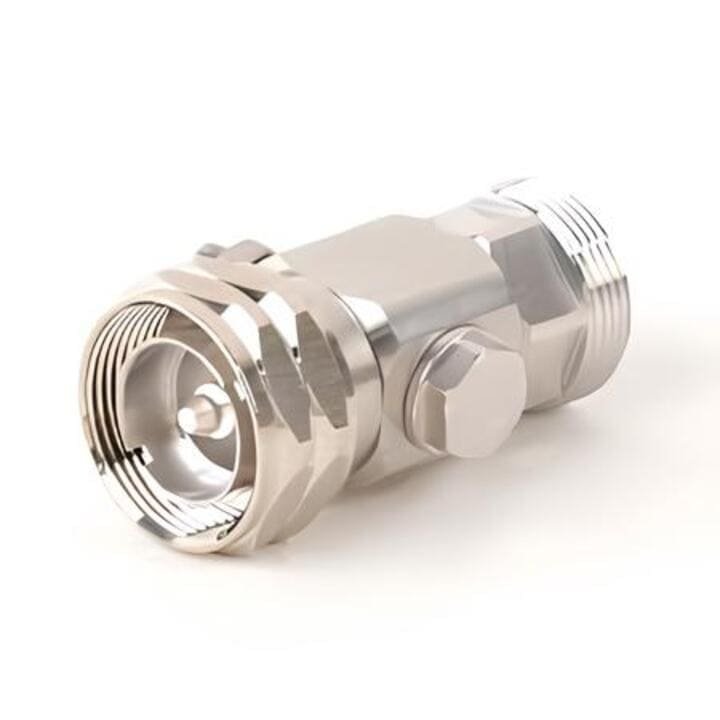

SURGE PROTECTOR DEVICE DIN M/F 6GHz
₹843.75
SURGE PROTECTOR DEVICE DIN M/F 6GHz offers reliable lightning and surge protection up to 6 GHz. Designed for RF systems, ensuring low insertion loss and high durability.
Product successfully added to the Quote List
| Quantity | Price | Discount |
|---|---|---|
| 100-199 | ₹810.00 | 4% |
| 200-499 | ₹776.25 | 8% |
| 500-999 | ₹759.38 | 10% |
| 1000+ | ₹742.50 | 12% |
SURGE PROTECTOR DEVICE DIN M/F 6GHz
A detailed breakdown of the key specifications and what they mean for this product:
Frequency Range (DC6?GHz)
This product is designed to operate effectively across the wide frequency range of DC6?GHz. This makes it suitable for supporting various cellular bands, including 3G, 4G, and LTE, ensuring versatility in diverse network applications.
Impedance (50)
An Impedance of 50 is a standard for most RF equipment. This value is crucial for matching the device with other components like cables and antennas to ensure maximum power transfer and minimize signal reflection.
VSWR (1.35)
A low VSWR (Voltage Standing Wave Ratio) of 1.35 is a measure of power efficiency. A low value indicates that very little signal is reflected back from the device, ensuring that most of the signal power is transmitted or received effectively.
Insertion Loss ( 0.35 dB)
This product has a specific characteristic for Insertion Loss with a value of 0.35 dB.
Max Power (100 watt)
This product has a specific characteristic for Max Power with a value of 100 watt.
Body Plating (Brass Tri-Alloy Plated)
This product has a specific characteristic for Body Plating with a value of Brass Tri-Alloy Plated.
Center Conductor Plating (Beryllium copper Ag/Au Plated)
This product has a specific characteristic for Center Conductor Plating with a value of Beryllium copper Ag/Au Plated.
Connector (DIN M/F)
The Connector type, DIN M/F, is the standard interface for connecting the device to cables and other equipment. This ensures compatibility and provides a secure, reliable connection.
Compliance (ROHS)
The Compliance with ROHS standards means the product meets specific safety and environmental regulations, ensuring it is free from hazardous materials and safe for use.
Operating Temperature() (-40 80)
This product has a specific characteristic for Operating Temperature() with a value of -40 80.
Applications
This product is suitable for a wide range of applications requiring reliable performance in wireless communications and RF systems.
| Frequency Range |
DC–6 GHz |
|---|---|
| Impedance |
50Ω |
| VSWR |
≤1.35 |
| Insertion Loss |
≤ 0.35 dB |
| Max Power |
100 watt |
| Body & Plating |
Brass & Tri-Alloy Plated |
| Center Conductor & Plating |
Beryllium copper & Ag/Au Plated |
| Connector |
DIN M/F |
| Compliance |
ROHS |
| Operating Temperature(℃) |
-40 – +80 |
